——————————————————————————————————— Hairui exchange table laser cutting machine are known worldwide for their excellent cutting quality.

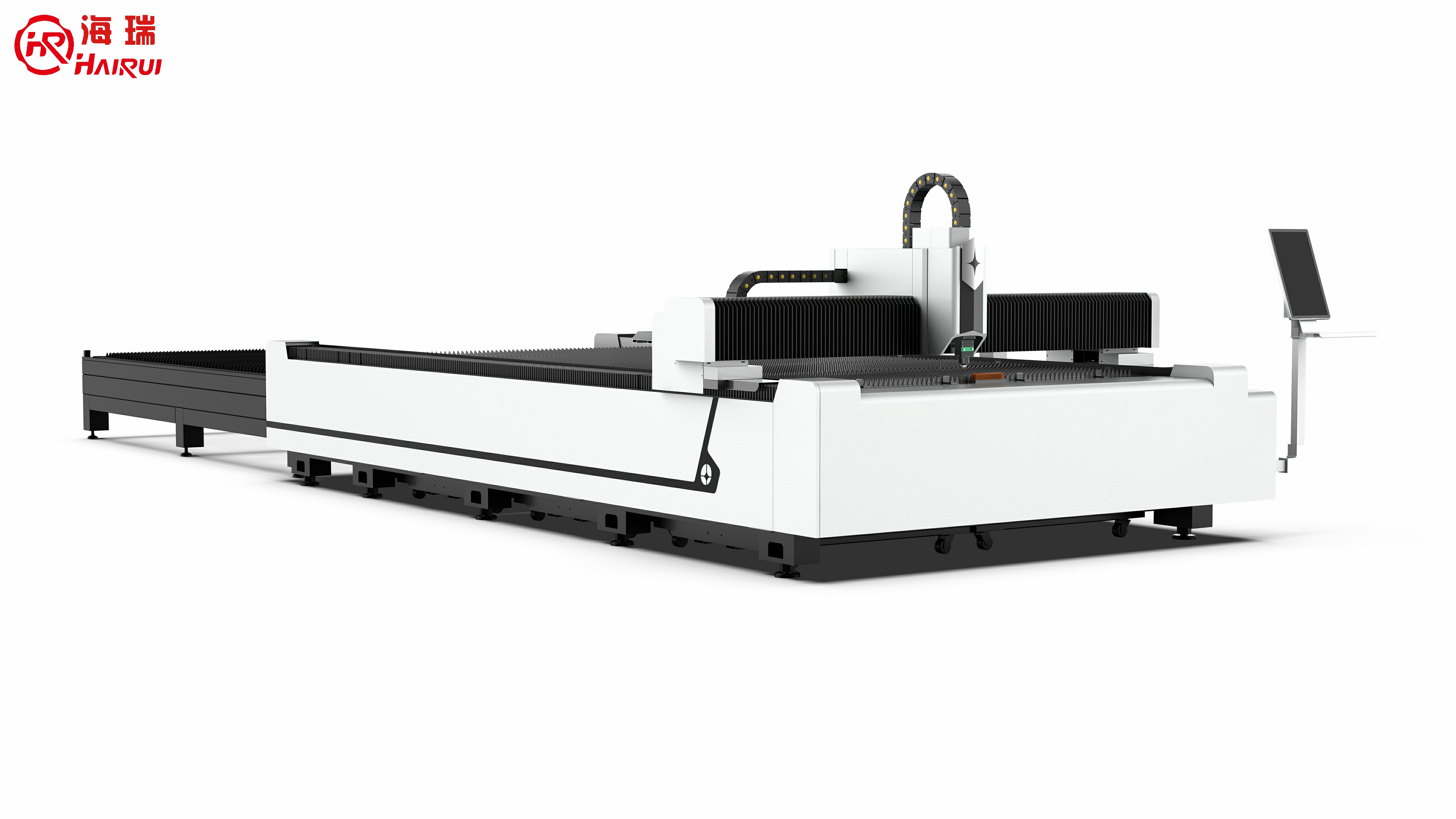

HRDFC-exchange table laser cutting machine is based on the open-type and single table laser cutting machine with an additional auxiliary worktable configuration, which is the perfect integration of cutting-edge laser technology, precision machine tool manufacturing technology and numerical control technology. The independently developed, designed and manufactured integral frame machine bed, aviation-grade cast aluminum beam and high-precision drive and transmission components ensure the high precision and high stability of the machine tool, thereby ensuring high cutting accuracy, equipped with ventilation system and waste collection trolleys, which improves the working environment and facilitates the cleaning of cutting waste. The design of high and low double-layer interchangeable main and auxiliary worktables can quickly and parallelly exchange the main and auxiliary worktables, which greatly shortens the loading and unloading time and makes the cutting uninterrupted, which significantly improves the production efficiency. Different brand of laser and laser cutting head can be selected according to actual needs, it is a laser cutting equipment with high cutting precision, high cutting efficiency and high material utilization rate.
|
Number |
Item |
Detail |
|
01 |
Effective Cutting Width |
1500/2000/2500mm |
|
02 |
Effective Cutting Length |
3000/4000/6000/8000/12000mm |
|
03 |
X Axis Effective Distance |
1550/2050/2550mm |
|
04 |
X Axis Quickly Positioning Speed |
120m/min |
|
05 |
Y1/Y2 Axis Effective Distance |
3050/4050/6050/8050/12050mm |
|
06 |
Y1/Y2 Axis Quickly Positioning Speed |
120m/min |
|
07 |
Z Axis Effective Distance |
260mm |
|
08 |
Z Axis Quickly Positioning Speed |
30m/min |
|
09 |
X Axis Positioning Accuracy |
±0.03mm |
|
10 |
X Axis Repeated Positioning Accuracy |
0.02mm |
|
11 |
Y1/Y2 Axis Positioning Accuracy |
±0.03mm |
|
12 |
Y1/Y2 Axis Repeated Positioning Accuracy |
0.02mm |
|
13 |
Z Axis Positioning Accuracy |
±0.01mm |
|
14 |
Z Axis Repeated Positioning Accuracy |
0.005mm |
|
15 |
Laser Power |
1000-40000W |
|
16 |
IP Grade |
IP54 |
|
17 |
Input Power Supply |
3×380/400/415V, 50/60Hz |
|
18 |
Equipment Main Color |
RAL 5015 Himmelblau or Customized |
According to the actual needs of customers, provide corresponding technical guidance and equipment information, answer various questions raised by customers, design laser processing solutions for customers from technical feasibility, and provide related equipment for customers to visit, sample, test machine.
Sales Service
Investigate the customer’s machine use site, assist the user in planning the layout of the water, electricity, gas and other equipment in the production site according to the actual situation on site, provide the customer with a complete set of equipment operation instructions, and provide training service for the user’s equipment operator. Before delivery, train the user's equipment operators on basic equipment theory, safety protection and equipment maintenance.
After Sales Service
In the user’s factory, the user’s equipment operator is trained in actual processing operations, equipment daily maintenance and safe operation to ensure that the user can familiarize with the equipment operation rules and methods as soon as possible, and can independently use the equipment for production. After the complete set of equipment is installed and debugged at the user’s site, the warranty is free for one year from the date of acceptance by the user. Our company will also arrange technical personnel to conduct technical visits from time to time, communicate with customers on routine maintenance and inspection of equipment, and answer various questions raised by users.
Service Commitment
Service response time within 2 hours, the professional after-sales service team provides 24-hour technical support by email, video, telephone and other communication methods to provide customers with timely, comprehensive, convenient and efficient technical services.
-
