——————————————————————————————————— Hairui handheld laser welding machine are known worldwide for their excellent welding quality.

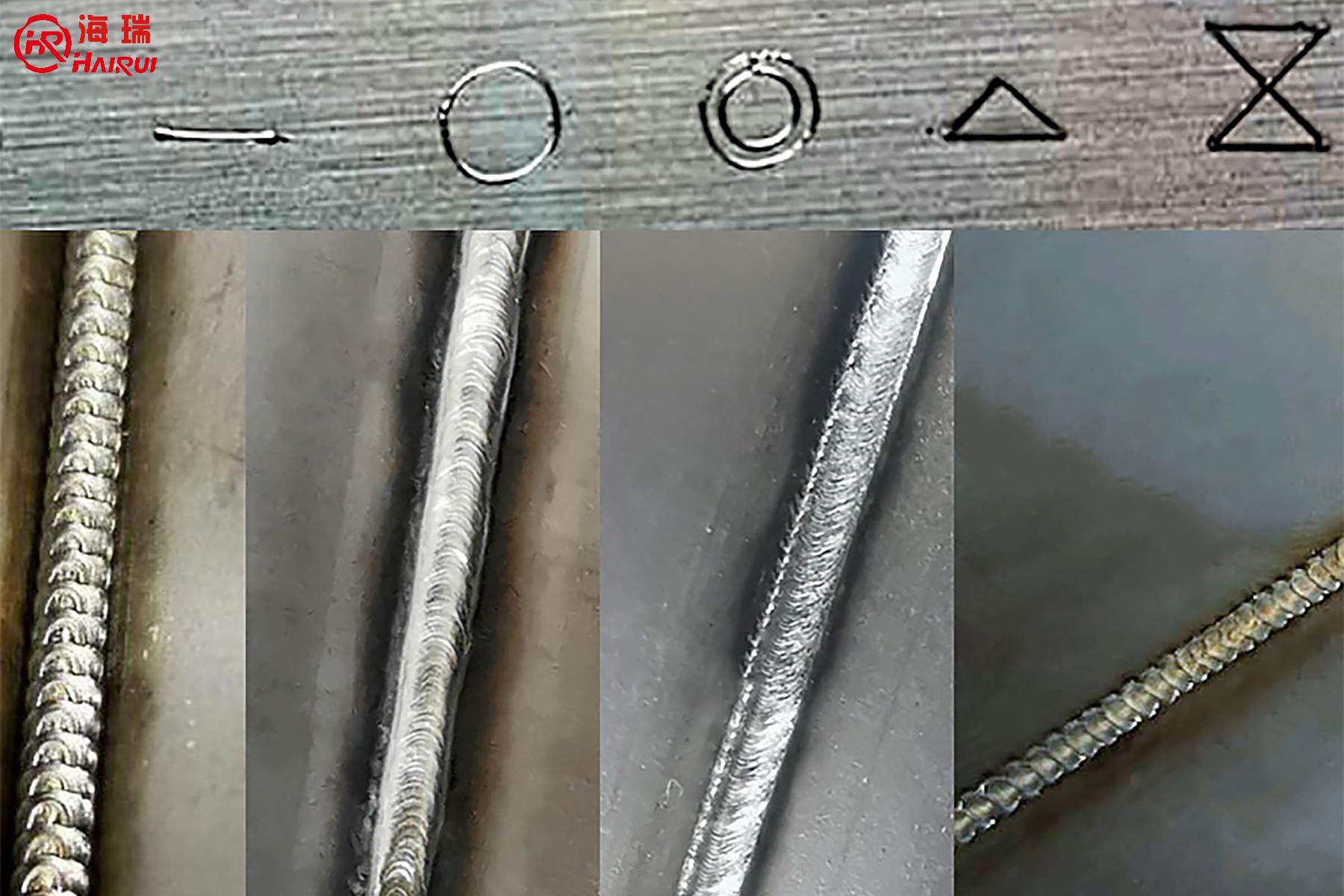

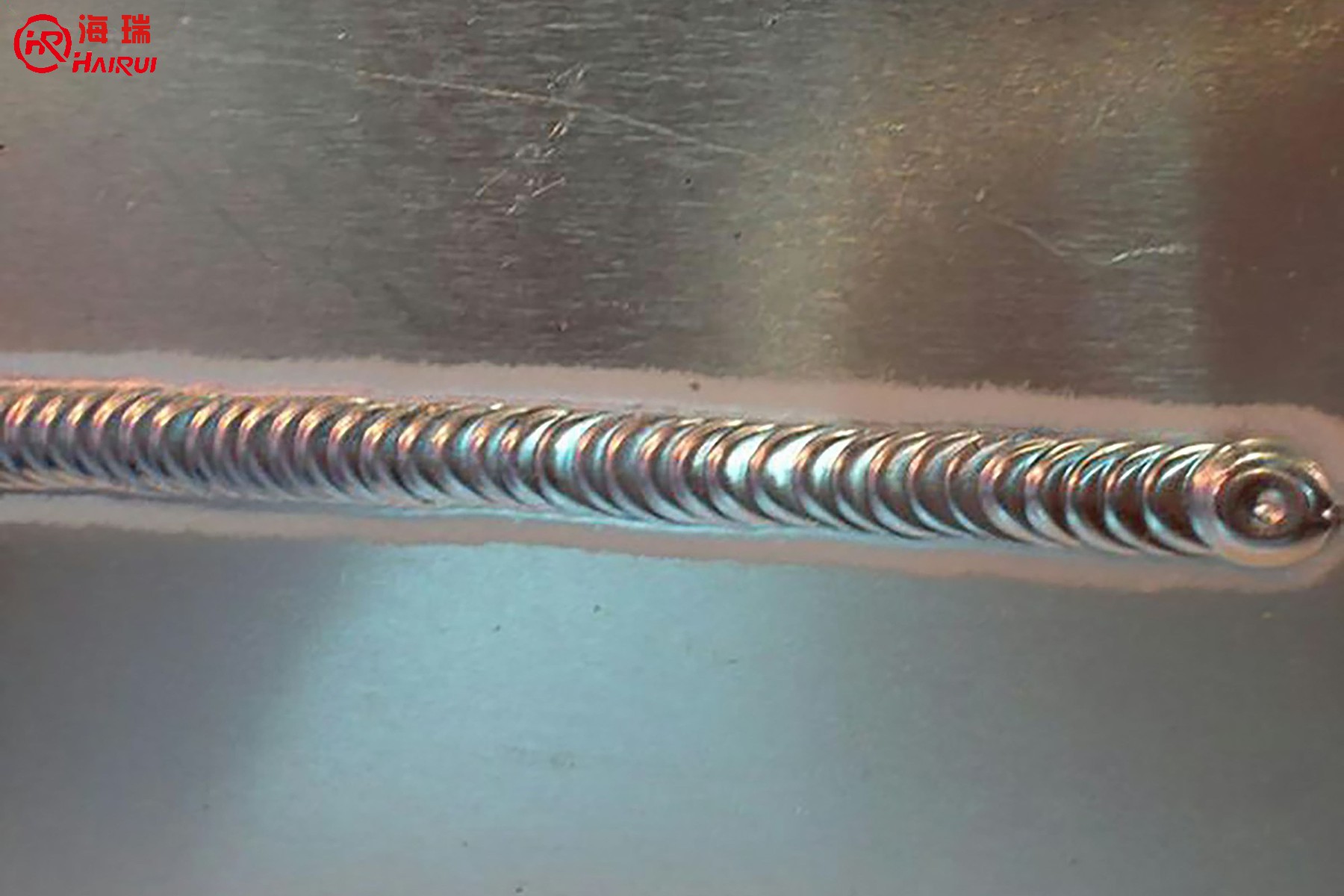

With the advantages of uniform welding seam, high welding quality, high welding efficiency, small welding thermal deformation and so on.

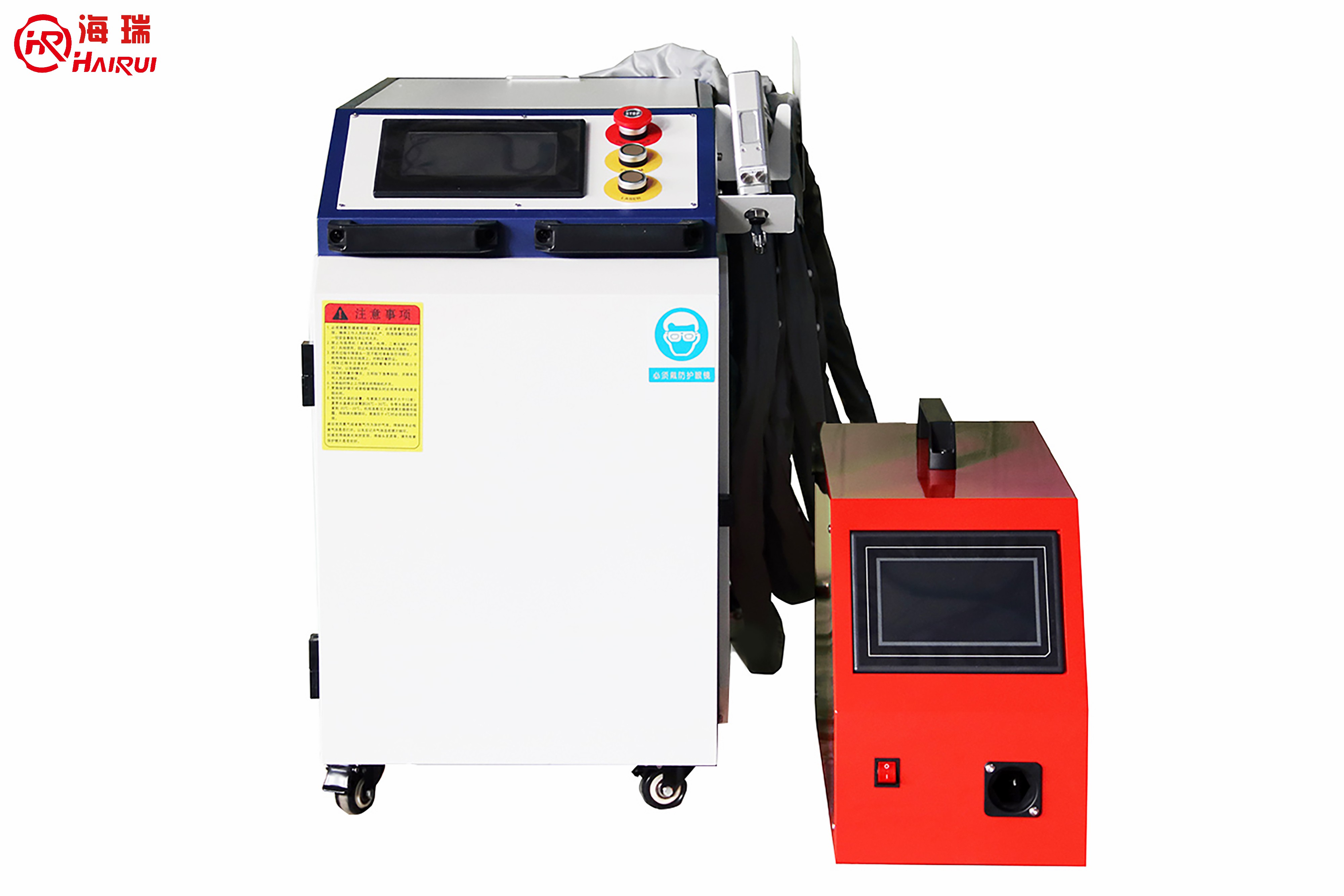

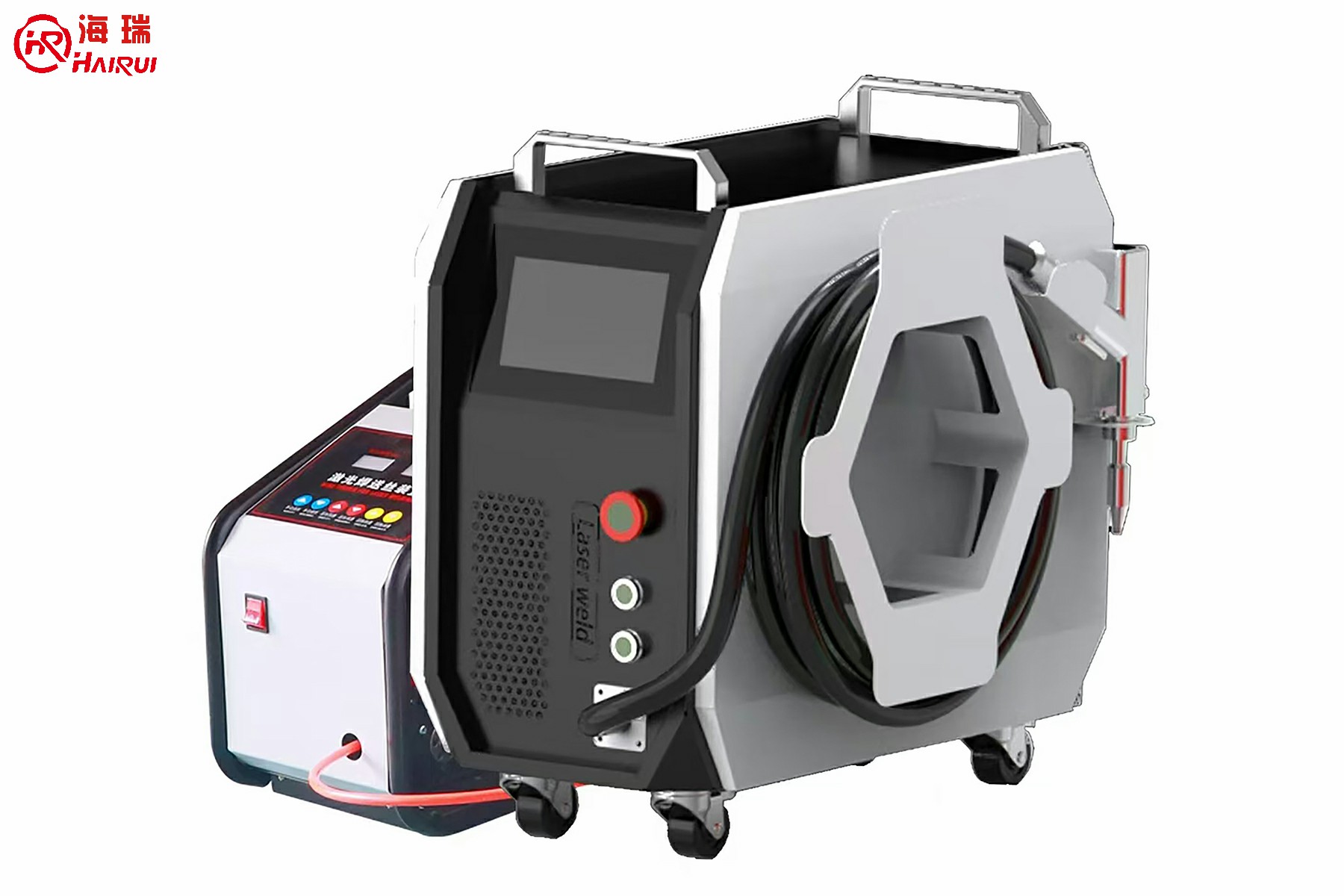

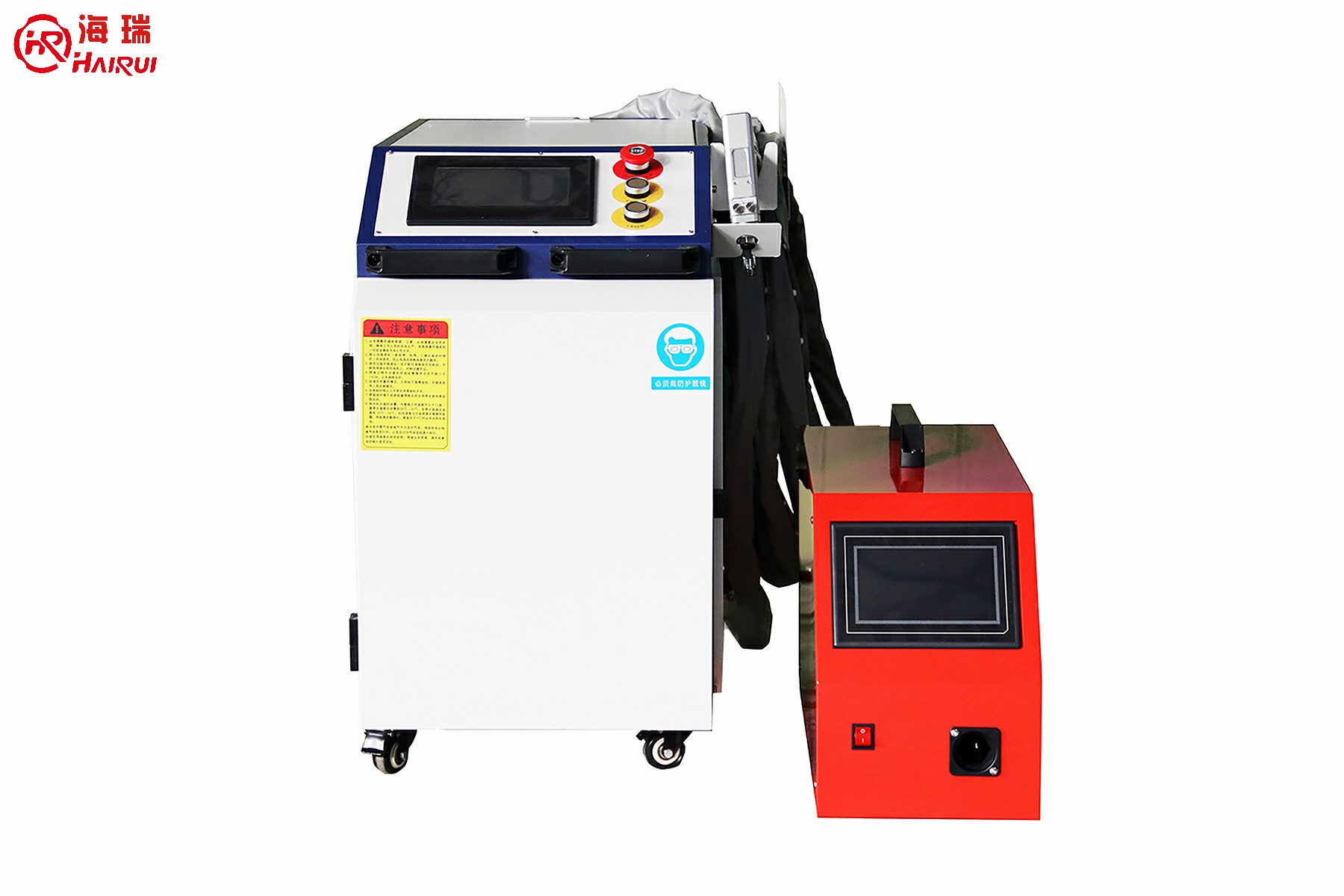

HRHLW-handheld laser welding machine is laser welding machine independently developed, designed and manufactured based on cutting-edge laser technology, with the advantages of uniform welding seam, high welding quality, high welding efficiency, small welding thermal deformation and so on. The air cooling model is mainly composed of laser, laser welding head, wire feeder, welding control system and so on, the water cooling model is mainly composed of laser, laser welding head, chiller, wire feeder, welding control system and so on. Different brand of laser and laser welding head can be selected according to the actual needs, it is a laser welding equipment with excellent performance.
The standard configuration of air cooling model is a two-in-one machine for welding and cutting.
The standard configuration of water cooling model is a three-in-one machine for welding, cutting and rust removal. The cleaning function can be optionally added according to actual needs to configure it into a four-in-one machine.
The double wire feeder can be optionally added according to actual needs to increase weld width.
|
Model |
HRHLW(A)-800 |
HRHLW(A)-1200 |
HRHLW(A)-1500 |
HRHLW(A)-2000 |
|||||
|
Single-side |
Double-side |
Single-side |
Double-side |
Single-side |
Double-side |
Single-side |
Double-side |
||
|
Welding Thickness |
Carbon Steel |
3mm |
6mm |
4mm |
8mm |
5mm |
10mm |
6mm |
12mm |
|
Stainless Steel |
3mm |
6mm |
4mm |
8mm |
5mm |
10mm |
6mm |
12mm |
|
|
Aluminum |
2mm |
4mm |
2.5mm |
5mm |
3mm |
6mm |
4mm |
8mm |
|
|
Protective Gas |
Nitrogen or Argon |
||||||||
|
Cooling Mode |
Air Cooling |
||||||||
|
Equipment Type |
Light-duty Type |
||||||||
|
IP Grade |
IP54 |
||||||||
|
Input Power Supply |
1×220/230/240-3×380/400/415V, 50/60Hz |
||||||||
|
Equipment Main Color |
RAL 5015 Himmelblau or Customized |
||||||||
|
Model |
HRHLW(W)-1500 |
HRHLW(W)-2000 |
HRHLW(W)-3000 |
||||
|
Single-side |
Double-side |
Single-side |
Double-side |
Single-side |
Double-side |
||
|
Welding Thickness |
Carbon Steel |
5mm |
10mm |
6mm |
12mm |
8mm |
16mm |
|
Stainless Steel |
5mm |
10mm |
6mm |
12mm |
8mm |
16mm |
|
|
Aluminum |
3mm |
6mm |
4mm |
8mm |
6mm |
12mm |
|
|
Protective Gas |
Nitrogen or Argon |
||||||
|
Cooling Mode |
Water Cooling |
||||||
|
Equipment Type |
Heavy-duty Type |
||||||
|
IP Grade |
IP54 |
||||||
|
Input Power Supply |
1×220/230/240-3×380/400/415V, 50/60Hz |
||||||
|
Equipment Main Color |
RAL 5015 Himmelblau or Customized |
||||||
According to the actual needs of customers, provide corresponding technical guidance and equipment information, answer various questions raised by customers, design laser processing solutions for customers from technical feasibility, and provide related equipment for customers to visit, sample, test machine.
Sales Service
Investigate the customer’s machine use site, assist the user in planning the layout of the water, electricity, gas and other equipment in the production site according to the actual situation on site, provide the customer with a complete set of equipment operation instructions, and provide training service for the user’s equipment operator. Before delivery, train the user's equipment operators on basic equipment theory, safety protection and equipment maintenance.
After Sales Service
In the user’s factory, the user’s equipment operator is trained in actual processing operations, equipment daily maintenance and safe operation to ensure that the user can familiarize with the equipment operation rules and methods as soon as possible, and can independently use the equipment for production. After the complete set of equipment is installed and debugged at the user’s site, the warranty is free for one year from the date of acceptance by the user. Our company will also arrange technical personnel to conduct technical visits from time to time, communicate with customers on routine maintenance and inspection of equipment, and answer various questions raised by users.
Service Commitment
Service response time within 2 hours, the professional after-sales service team provides 24-hour technical support by email, video, telephone and other communication methods to provide customers with timely, comprehensive, convenient and efficient technical services.
-
