——————————————————————————————————— Hairui H beam straightening machine are known worldwide for their excellent quality.

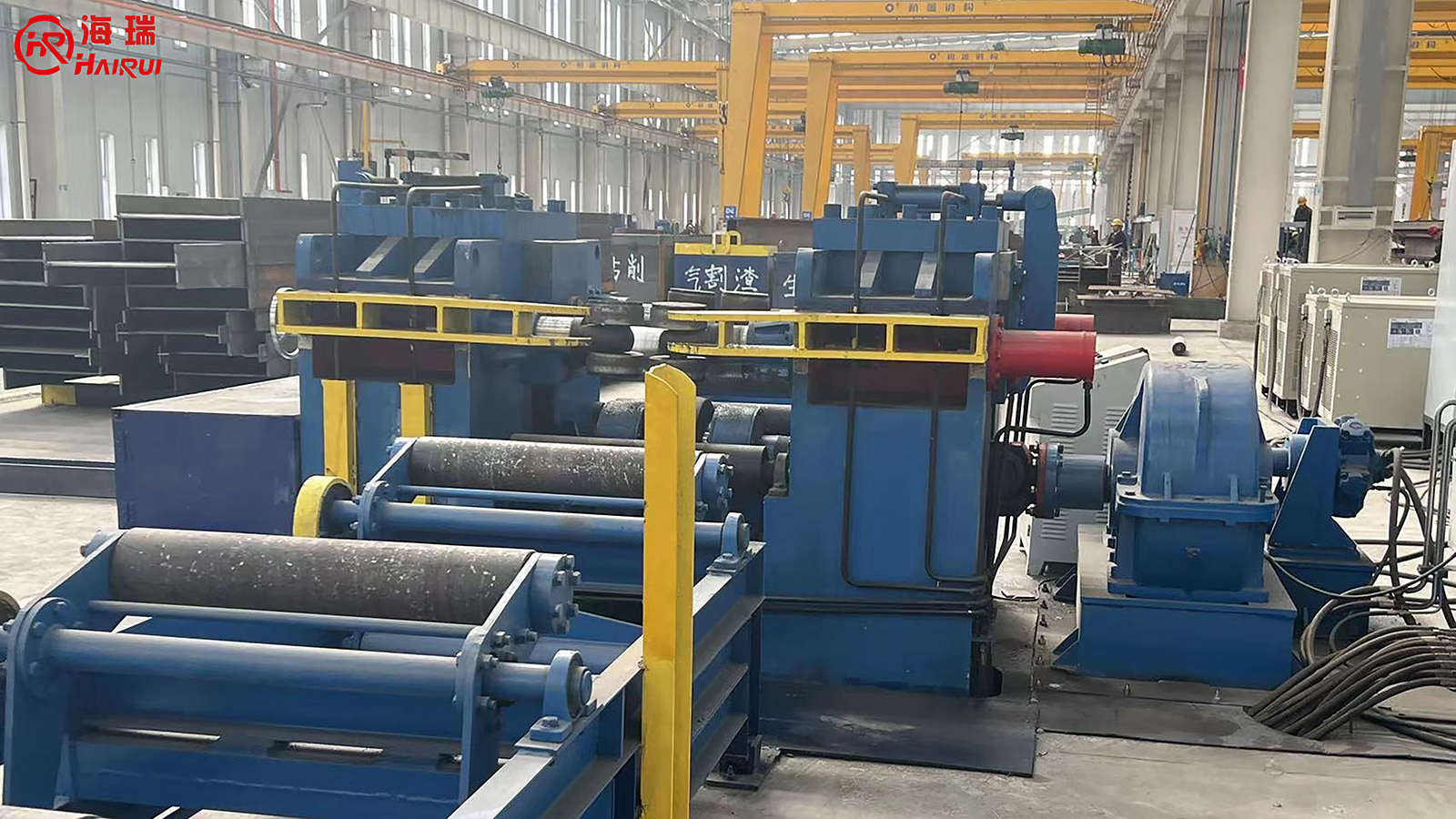

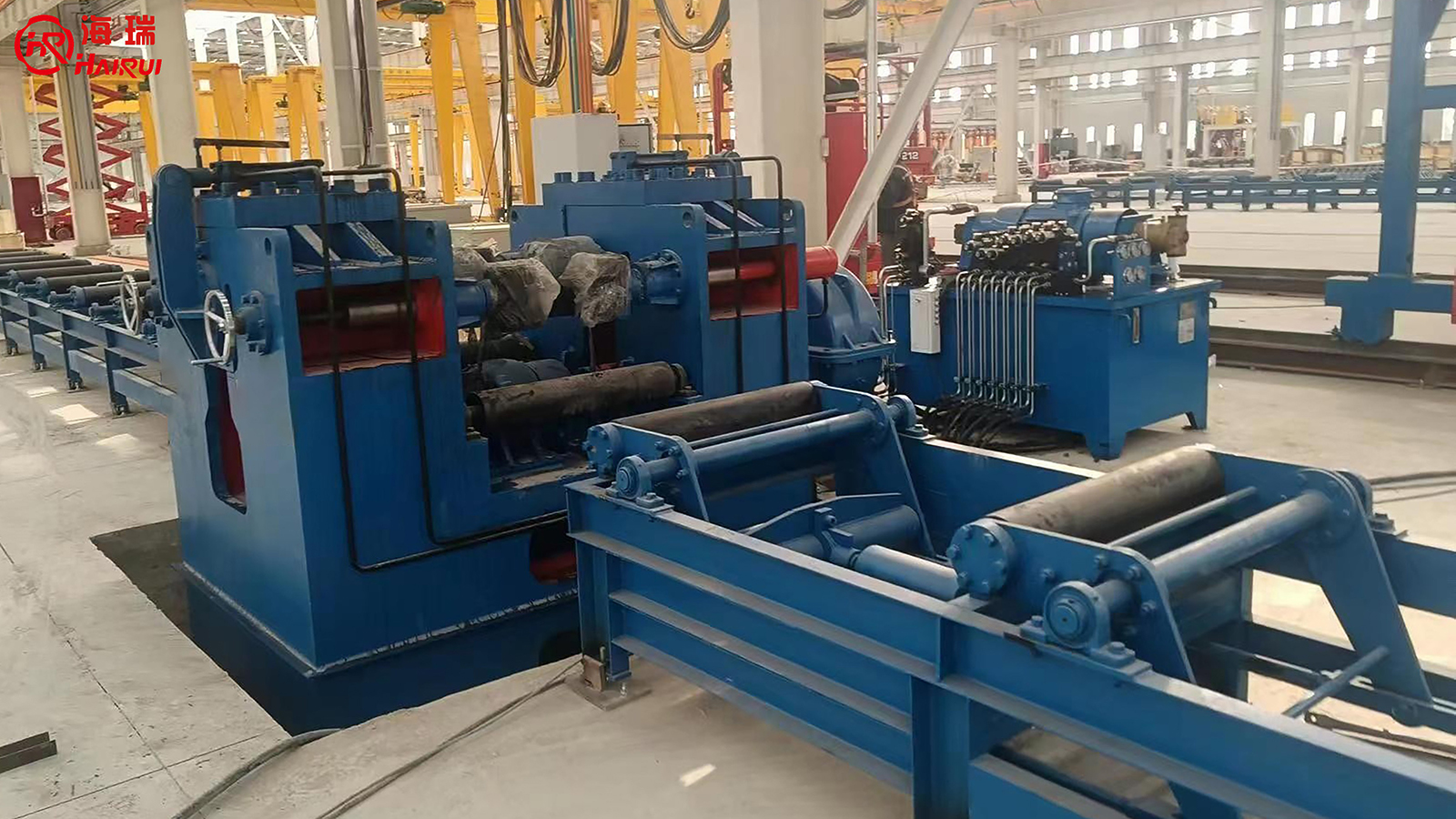

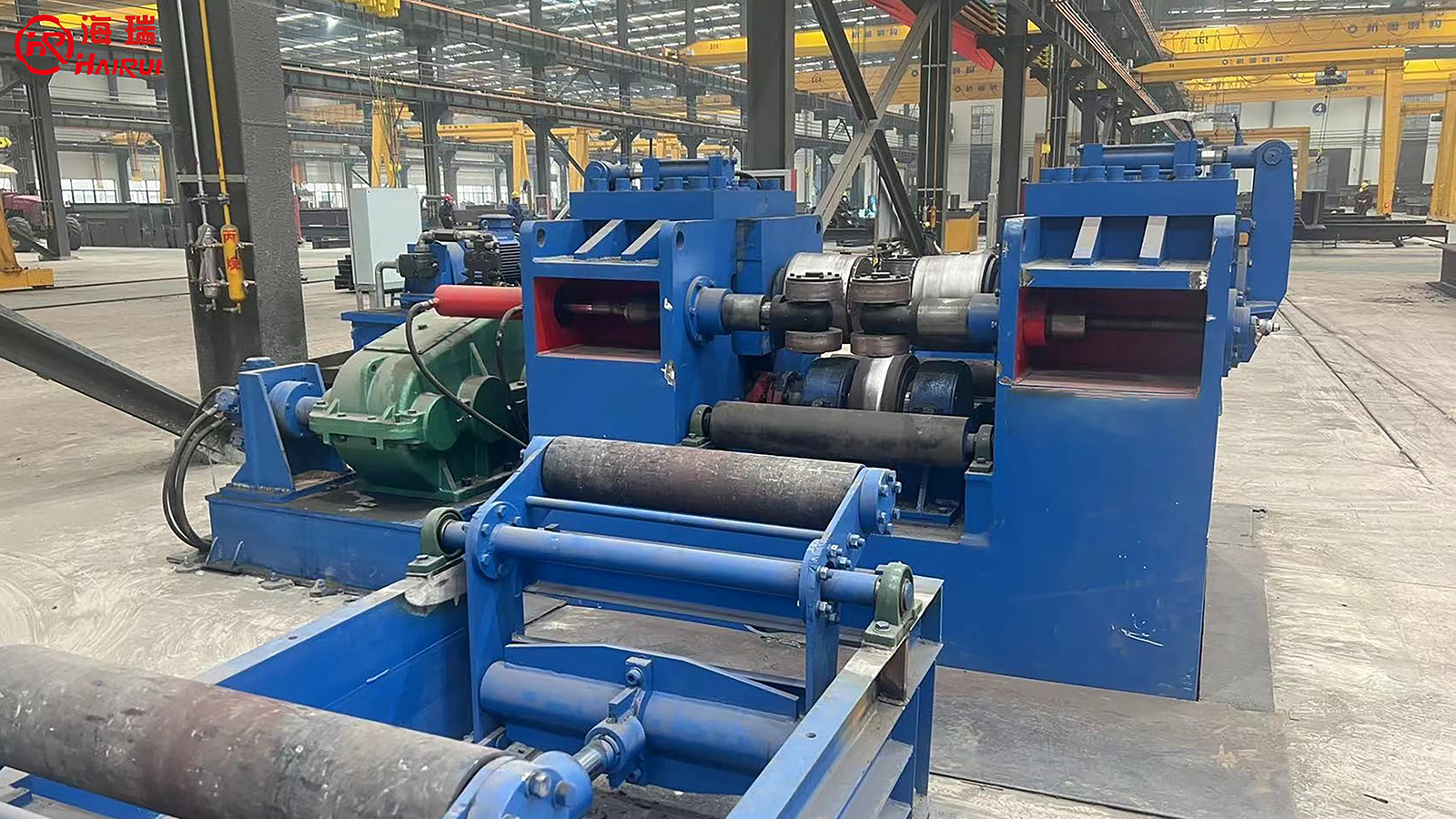

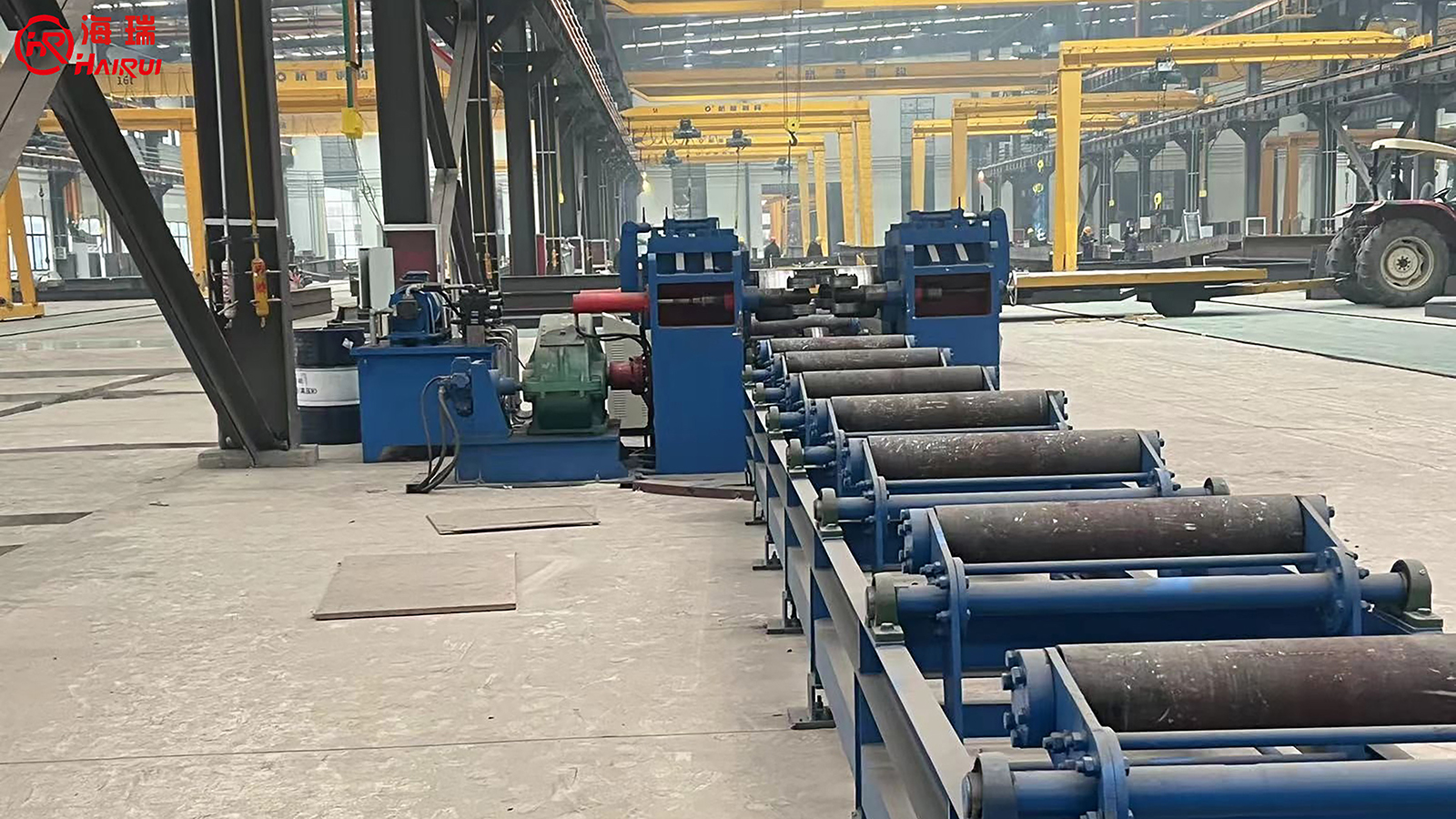

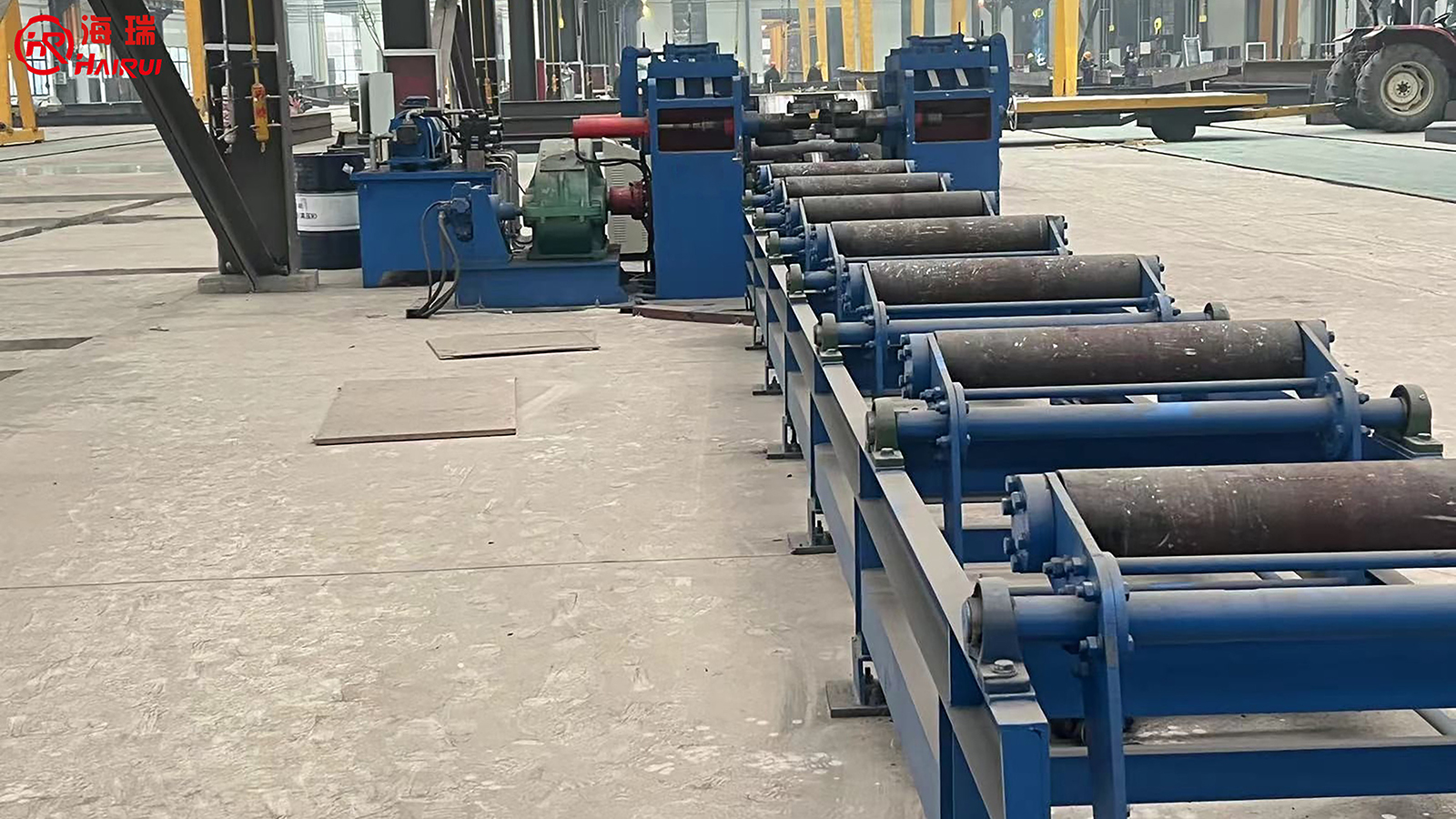

HRJZ-H beam straightening machine is the special equipment for steel structure manufacturers to straightening H beam, the H beam flange will bending deformation during the welding heating process, and this equipment needs to be used for straightening. There are mechanical straightening model and hydraulic straightening model for choose, mechanical straightening model suitable for light steel, and hydraulic straightening model suitable for heavy steel. The mechanical straightening model is downward pressure type, and the motor & reducer drives the pressure roller to downward for straightening, the hydraulic straightening model is divided into two structural forms: downward pressure type and upward peak type, the downward pressure type adopts the hydraulic cylinder to drive the pressure roller to downward for straightening, the upward peak type adopts the hydraulic cylinder to drive the drive roller to upward for straightening. The equipment has the advantages of advanced structure, stable and reliable operation, high degree of automation, convenient operation and so on.
|
Model |
HRJZ-40 |
HRJZ-60 |
HRJZ-80 |
HRJZ-100 |
|
Flange Width |
150-800mm |
150-800mm |
200-1000mm |
200-1200mm |
|
Flange Thickness |
≤40mm(Q235) |
≤60mm(Q235) |
≤80mm(Q235) |
≤100mm(Q235) |
|
≤25mm(Q355) |
≤40mm(Q355) |
≤60mm(Q355) |
≤80mm(Q355) |
|
|
Web Height |
≥160mm |
≥160mm |
≥400mm |
≥400mm |
|
Straightening Speed |
12000mm/min |
6300mm/min |
6300mm/min |
6300mm/min |
|
24.2kw |
15kw |
Hydraulic Motor |
Hydraulic Motor |
|
|
Hydraulic Station Motor Power |
None |
7.5kw |
18.5kw |
22kw |
|
Straightening Mode |
Mechanical & Downward Pressure Type |
Hydraulic & Downward Pressure Type |
Hydraulic & Downward Pressure/Upward Peak Type |
|
|
IP Grade |
IP54 |
|||
|
Input Power Supply |
3×380/400/415V, 50/60Hz |
|||
|
Equipment Main Color |
RAL 5015 Himmelblau or Customized |
|||
According to the actual needs of customers, provide corresponding technical guidance and equipment information, answer various questions raised by customers, design laser processing solutions for customers from technical feasibility, and provide related equipment for customers to visit, sample, test machine.
Sales Service
Investigate the customer’s machine use site, assist the user in planning the layout of the water, electricity, gas and other equipment in the production site according to the actual situation on site, provide the customer with a complete set of equipment operation instructions, and provide training service for the user’s equipment operator. Before delivery, train the user's equipment operators on basic equipment theory, safety protection and equipment maintenance.
After Sales Service
In the user’s factory, the user’s equipment operator is trained in actual processing operations, equipment daily maintenance and safe operation to ensure that the user can familiarize with the equipment operation rules and methods as soon as possible, and can independently use the equipment for production. After the complete set of equipment is installed and debugged at the user’s site, the warranty is free for one year from the date of acceptance by the user. Our company will also arrange technical personnel to conduct technical visits from time to time, communicate with customers on routine maintenance and inspection of equipment, and answer various questions raised by users.
Service Commitment
Service response time within 2 hours, the professional after-sales service team provides 24-hour technical support by email, video, telephone and other communication methods to provide customers with timely, comprehensive, convenient and efficient technical services.
