——————————————————————————————————— Hairui adjustable welding rotator are known worldwide for their excellent quality.
Three model for choose: bolt adjustable model, manual screw adjustable model and electric screw adjustable model.
Variety of mechanism for optional: mechanism for optional: manual moving mechanism, electric moving mechanism, mechanical anti-movement mechanism, electronic anti-movement mechanism and tilting mechanism.

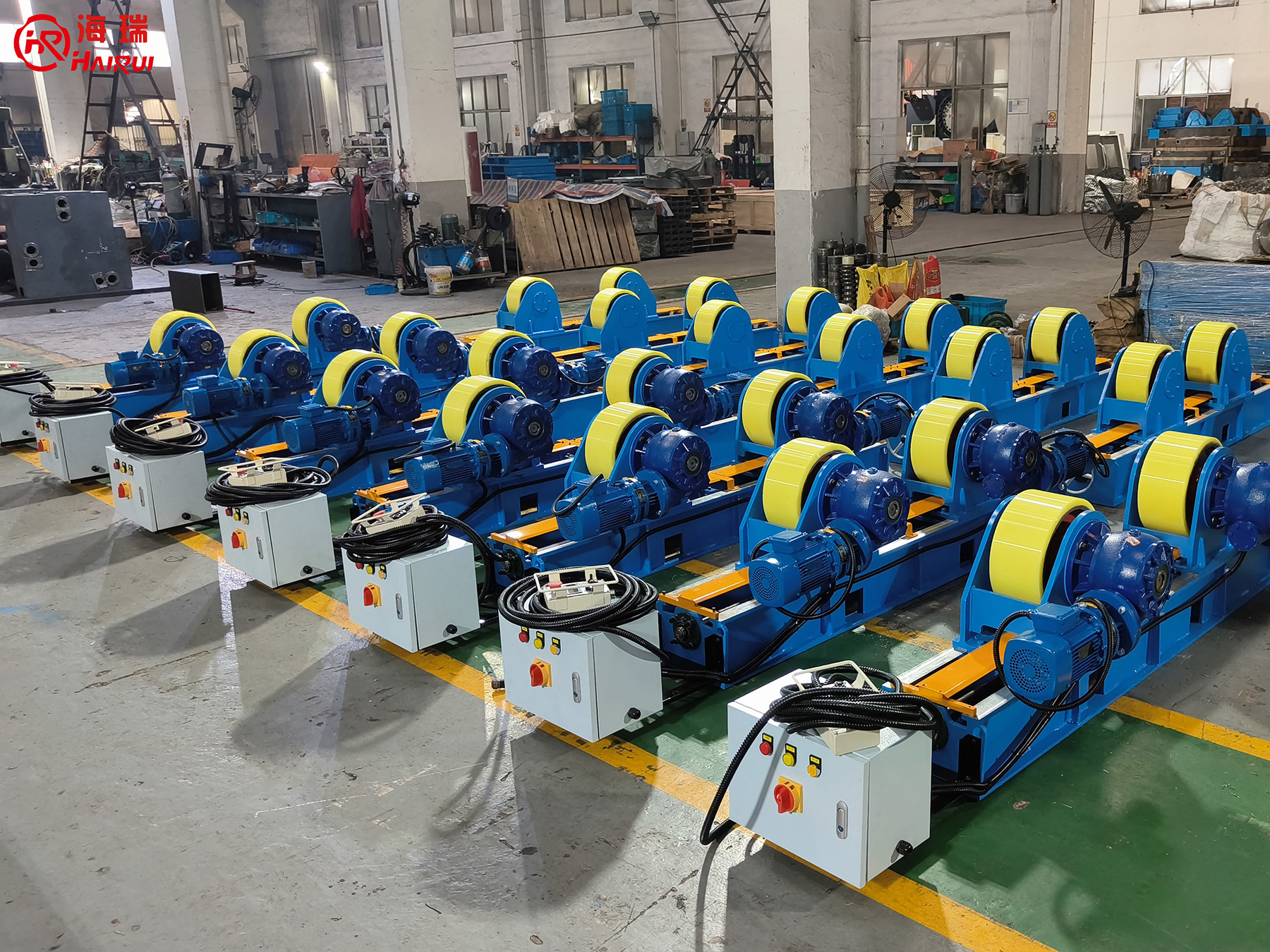

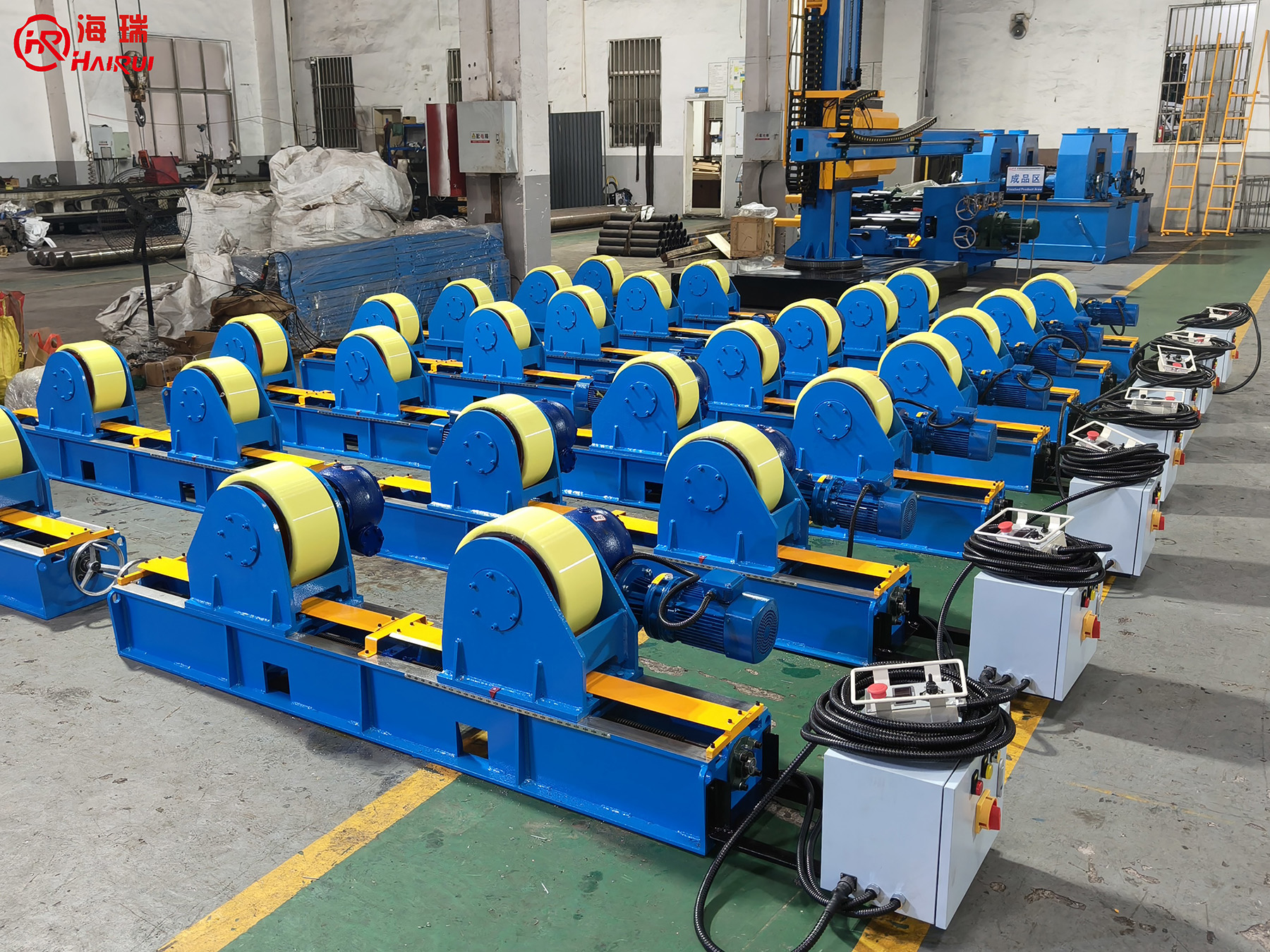

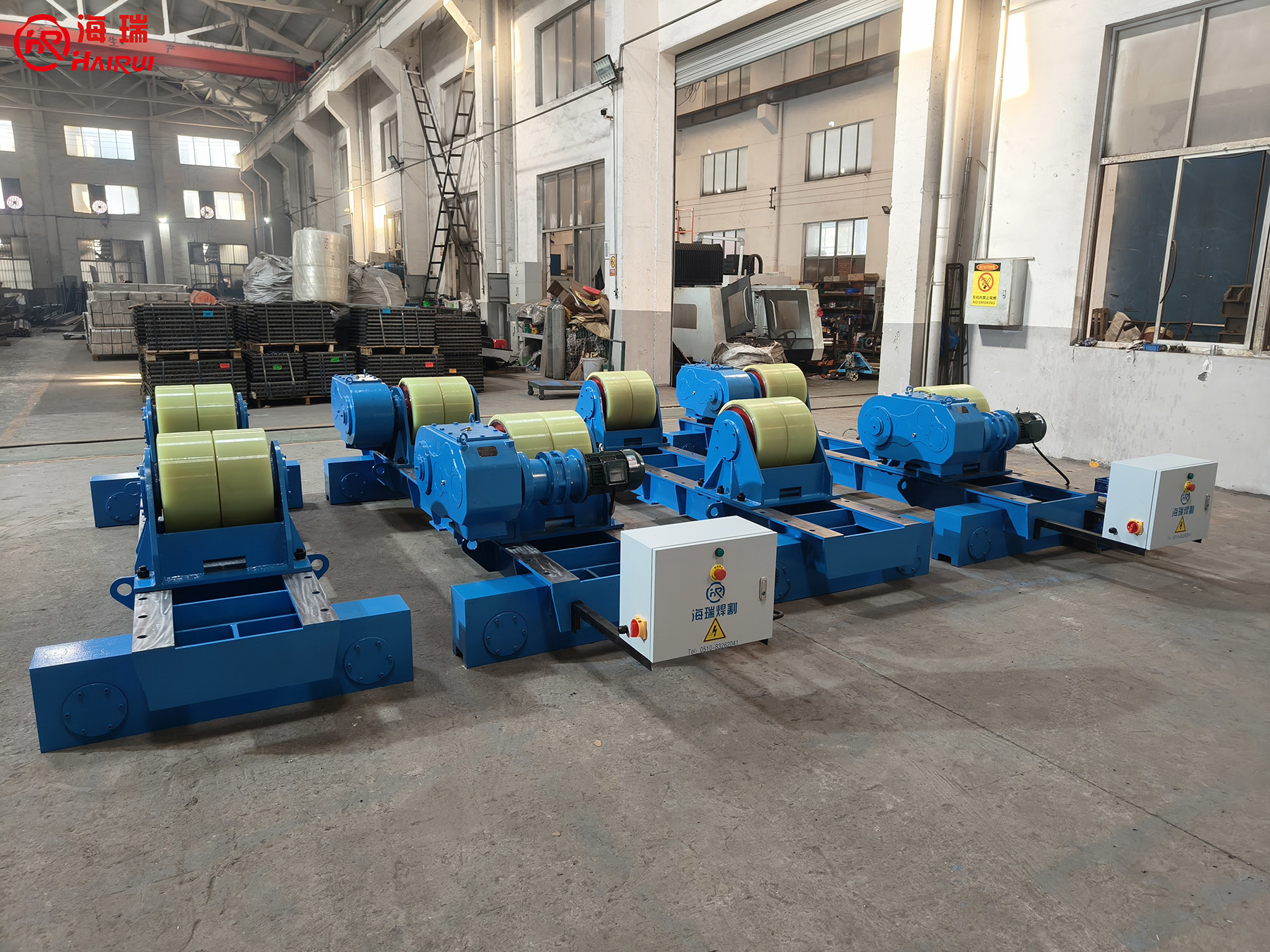

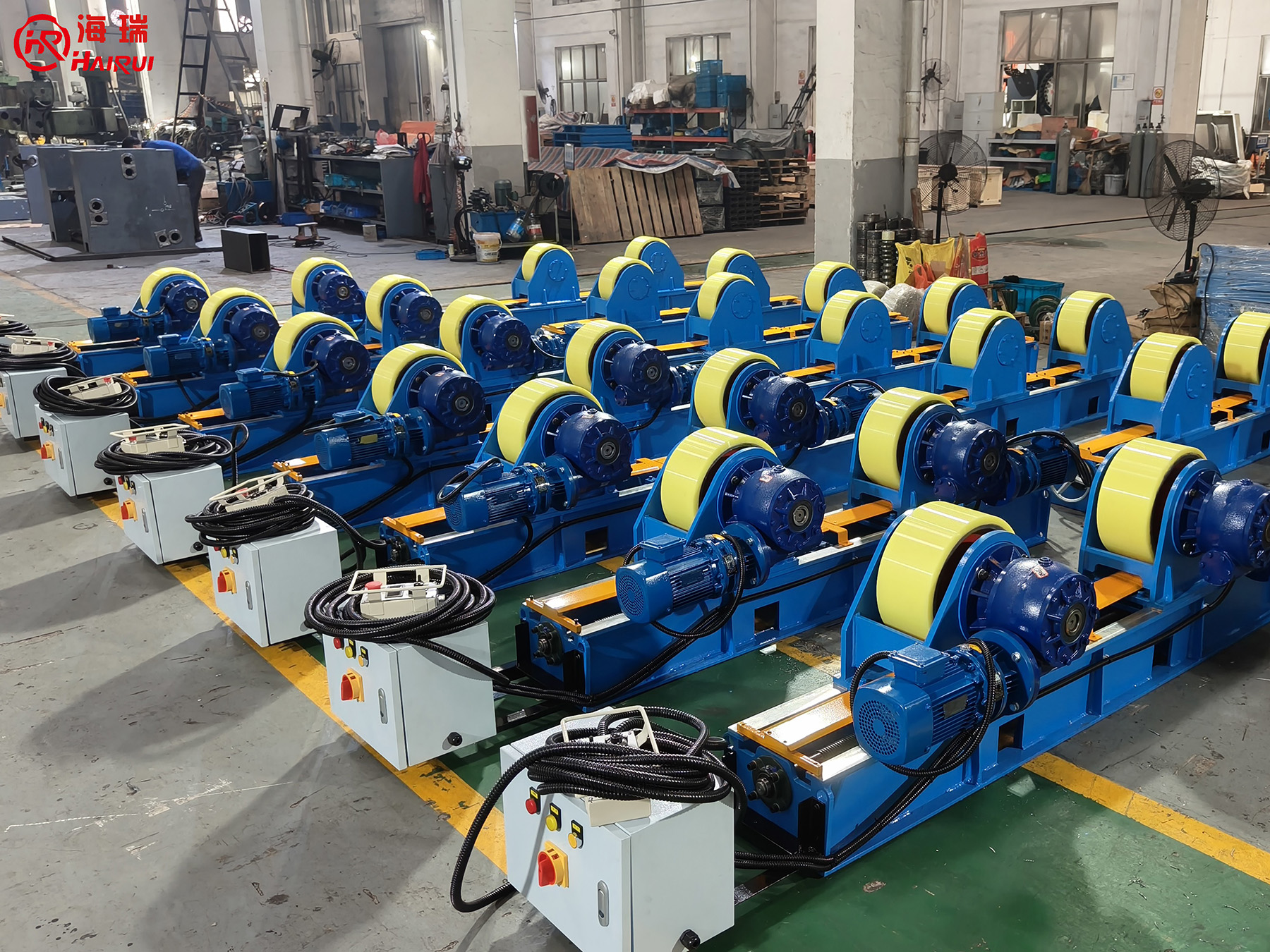

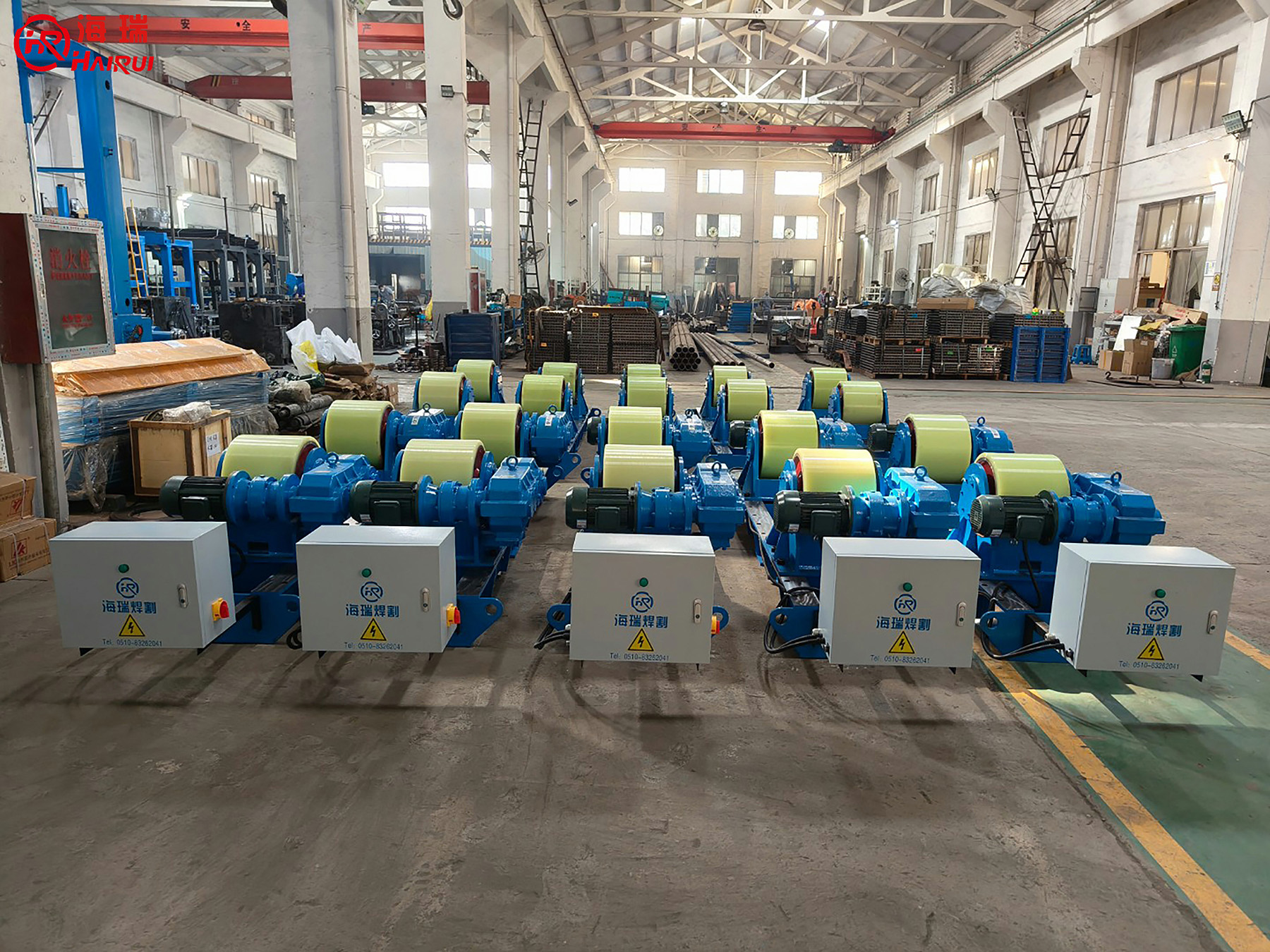

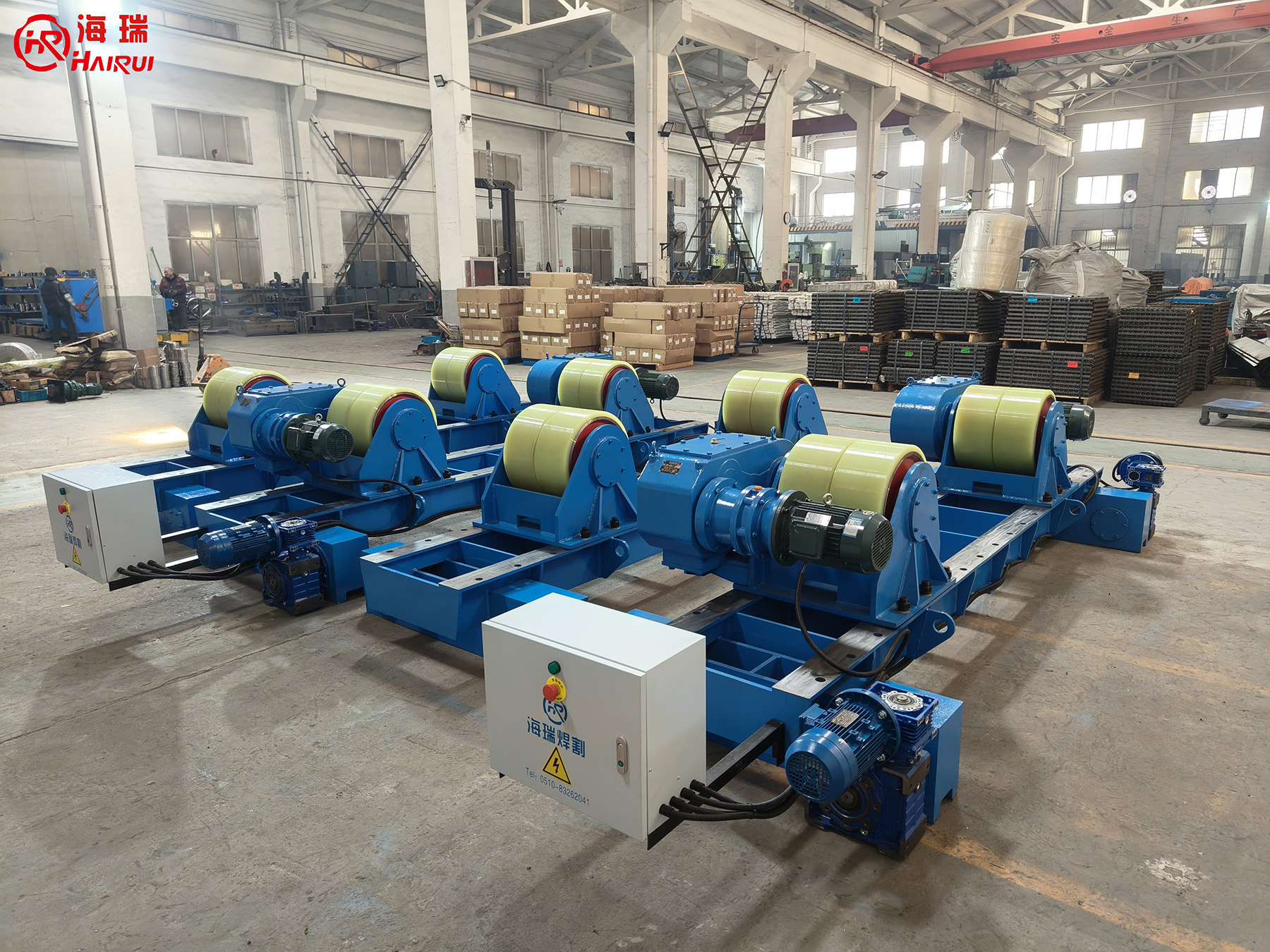

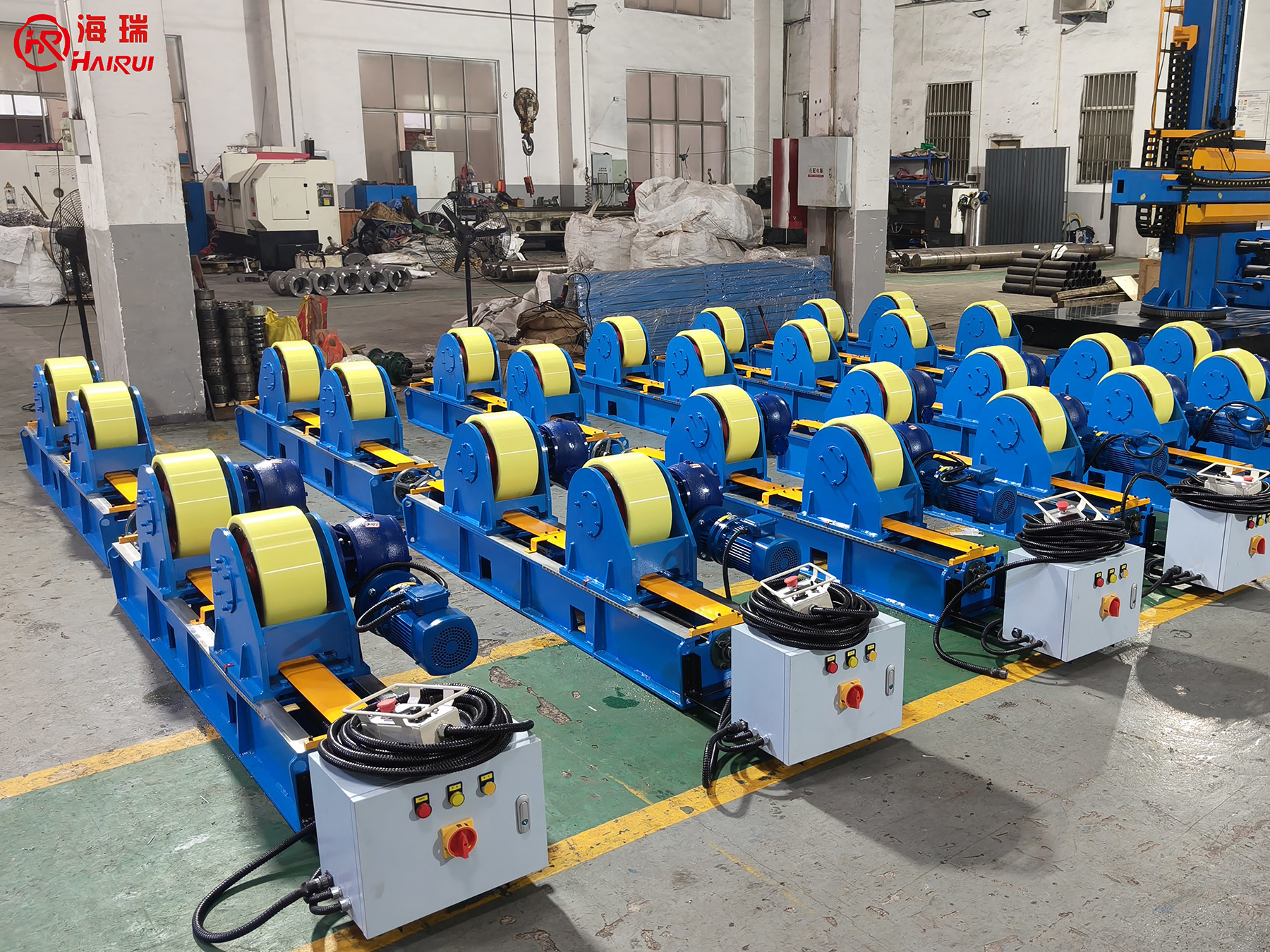

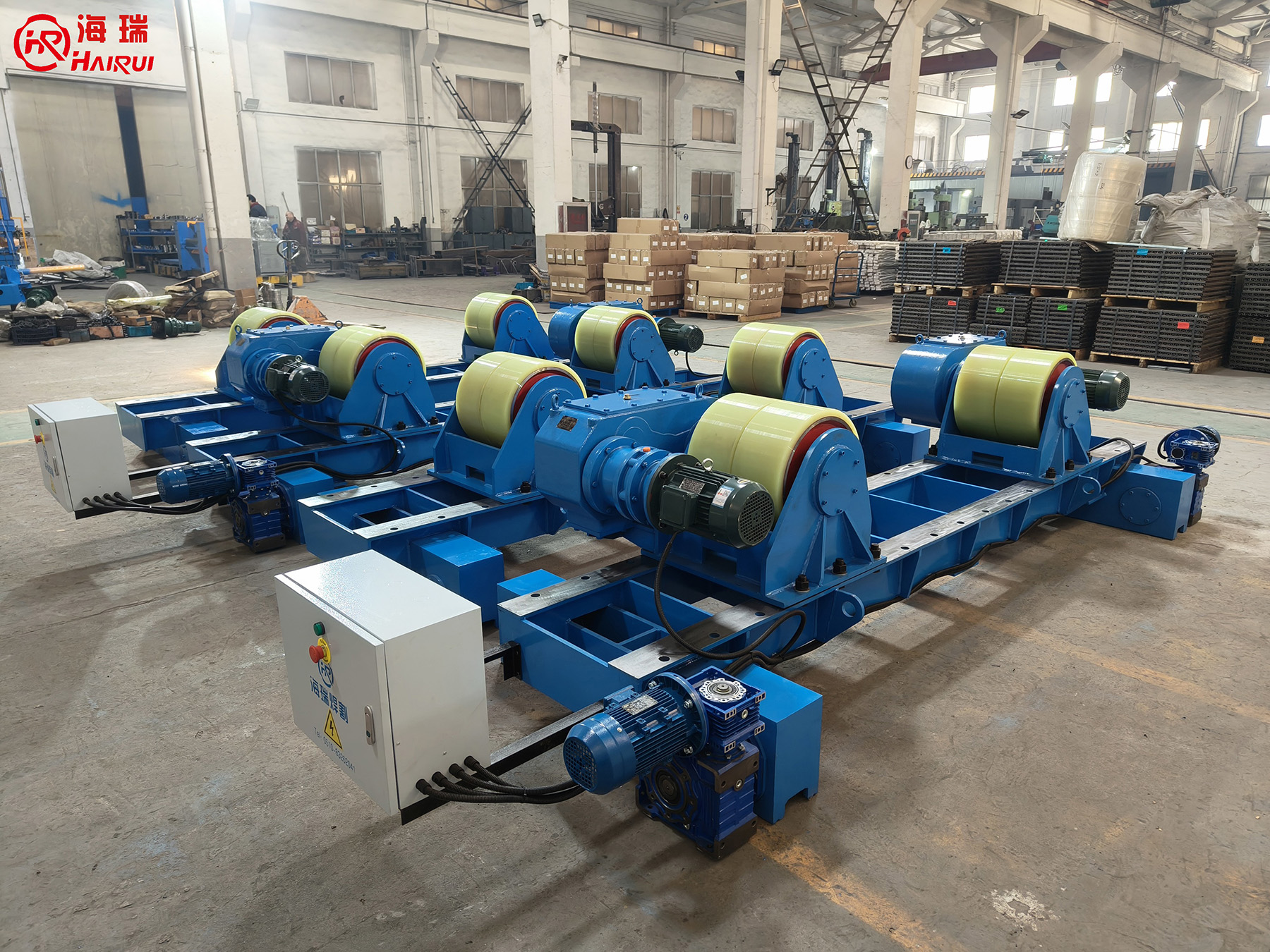

HRKT-adjustable welding rotator is mainly used for welding, cutting, rubber lining, polishing, shot blasting and assembling of circular cylinders, its outstanding feature is that it can adapt to cylinders of different diameters by adjusting the center distance of the rollers. There are bolt adjustable model and screw adjustable model for choose, among them, the screw adjustable model is divided into two structural forms: manual screw adjustable and electric screw adjustable. The roller can adopt steel glue combined roller, polyurethane roller and steel roller. In addition, manual moving mechanism, electric moving mechanism, mechanical anti-movement mechanism, electronic anti-movement mechanism and tilting mechanism can be selected according to actual needs. The electrical control system adopts frequency conversion speed regulation and cordless remote controller control, the equipment has the advantages of advanced structure, stable and reliable operation, high degree of automation, convenient operation and so on.
|
Model |
Max Load (kg) |
Cylinder Diameter (mm) |
Roller Diameter & Width (mm) |
Roller Speed (mm/min) |
Motor Power (kw) |
Moving Speed (mm/min) |
Motor Power (kw) |
||
|
Polyurethane Roller |
Steel Roller |
||||||||
|
Standard Type |
Heavy Type |
||||||||
|
HRKT-02 |
2000 |
200-1600 |
Ø200×80 |
Ø200×100 |
Ø200×80 |
100-1000 |
2×0.18 |
300-3000 |
2×0.18 |
|
HRKT-05 |
5000 |
250-2300 |
Ø250×120 |
Ø250×140 |
Ø250×100 |
2×0.37 |
2×0.25 |
||
|
HRKT-10 |
10000 |
320-2800 |
Ø300×140 |
Ø300×170 |
Ø300×120 |
2×0.55 |
2×0.37 |
||
|
HRKT-20 |
20000 |
500-3500 |
Ø350×160 |
Ø350×180 |
Ø350×140 |
2×0.75 |
2×0.55 |
||
|
HRKT-40 |
40000 |
600-4200 |
Ø400×180 |
Ø400×200 |
Ø400×160 |
2×1.5 |
2×0.75 |
||
|
HRKT-60 |
60000 |
750-4800 |
Ø450×200 |
Ø450×220 |
Ø450×180 |
2×2.2 |
2×1.1 |
||
|
HRKT-80 |
80000 |
850-5000 |
Ø500×220 |
Ø500×240 |
Ø500×200 |
2×2.2 |
2×1.5 |
||
|
HRKT-100 |
100000 |
1000-5500 |
Ø500×240 |
Ø500×260 |
Ø500×220 |
2×3 |
2×1.5 |
||
|
HRKT-150 |
150000 |
1000-6000 |
- |
2×Ø500×280 |
Ø500×250 |
2×4 |
2×2.2 |
||
|
HRKT-200 |
200000 |
1000-6500 |
- |
2×Ø600×325 |
Ø600×280 |
2×5.5 |
2×3 |
||
|
HRKT-300 |
300000 |
1000-7000 |
- |
- |
Ø700×300 |
2×5.5 |
2×4 |
||
|
HRKT-400 |
400000 |
1000-7500 |
- |
- |
Ø750×350 |
2×7.5 |
2×5.5 |
||
|
HRKT-500 |
500000 |
1000-8000 |
- |
- |
Ø800×400 |
2×7.5 |
2×5.5 |
||
|
HRKT-800 |
800000 |
1500-9000 |
- |
- |
Ø900×500 |
2×11 |
2×7.5 |
||
|
HRKT-1200 |
1200000 |
2000-10000 |
- |
- |
Ø1000×600 |
2×15 |
2×11 |
||
|
Adjust Mode of Speed |
Inverter Control |
||||||||
|
IP Grade |
IP54 |
||||||||
|
Input Power Supply |
3×380/400/415V, 50/60Hz |
||||||||
|
Equipment Main Color |
RAL 5015 Himmelblau or Customized |
||||||||
