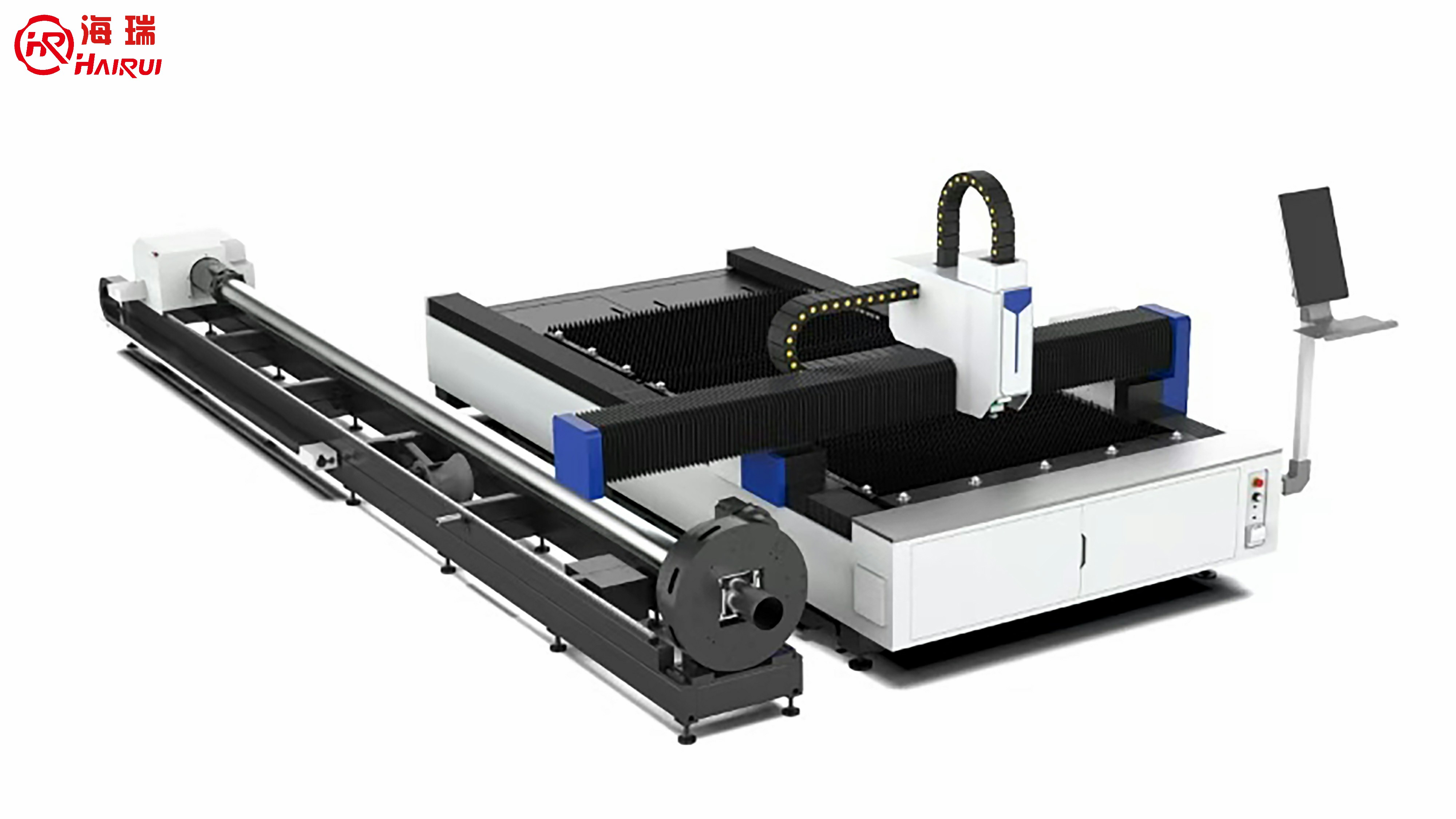

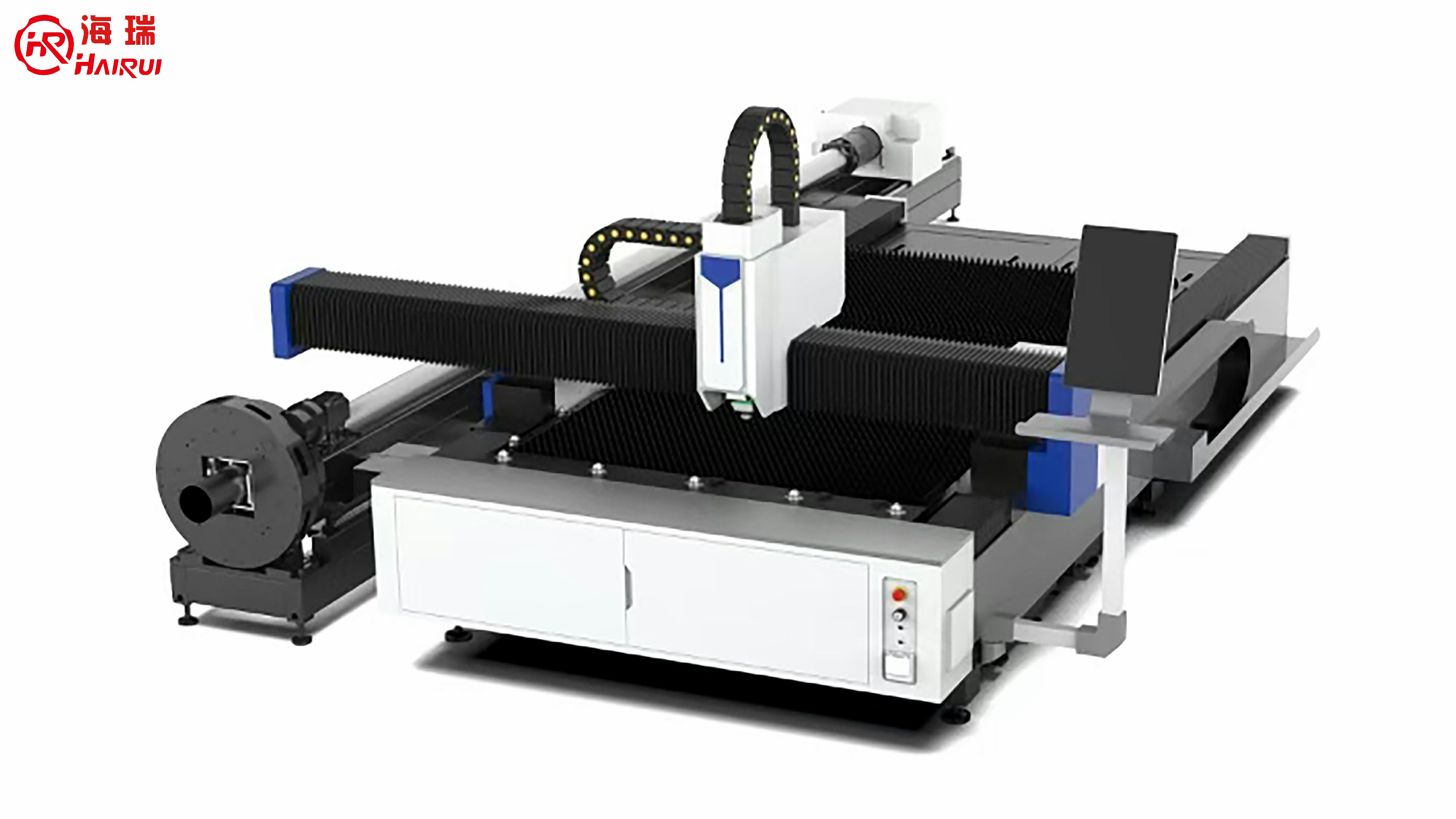

HRPPFC-pipe & plate integrated laser cutting machine is open-type and single table plate cutting and pipe cutting dual-purpose laser cutting machine independently developed, designed and manufactured for customers who have both plate cutting needs and pipe cutting needs, which is the perfect integration of cutting-edge laser technology, precision machine tool manufacturing technology and numerical control technology. The independently developed, designed and manufactured of main machine tool for cutting plate and auxiliary machine tool for cutting pipe is a one-piece frame machine bed, aviation-grade cast aluminum beam and high-precision drive and transmission components ensure the high precision and high stability of the machine tool, thereby ensuring high cutting accuracy, the self-centering pneumatic chuck is used to clamp the workpiece more conveniently, the double chuck and double drive push type pipe cutting method makes the remaining tail material shorter and further ensures high cutting accuracy, equipped with ventilation system and waste collection trolleys, which improves the working environment and facilitates the cleaning of cutting waste. Different brand of laser and laser cutting head can be selected according to actual needs, it is a laser cutting equipment with high cutting precision, high cutting efficiency and high material utilization rate.
|
Number |
Item |
Detail |
|
01 |
Effective Cutting Width |
1500/2000/2500mm |
|
02 |
Effective Cutting Length |
3000/4000/6000/8000/12000mm |
|
03 |
Round Pipe Diameter Range |
20-220mm |
|
04 |
Square Pipe Side Length Range |
20-150mm |
|
05 |
X Axis Effective Distance (Plate Cutting) |
1550/2050/2550mm |
|
06 |
X Axis Quickly Positioning Speed |
120m/min |
|
07 |
Y1/Y2 Axis Effective Distance |
3050/4050/6050/8050/12050mm |
|
08 |
Y1/Y2 Axis Quickly Positioning Speed |
120m/min |
|
09 |
Z Axis Effective Distance |
150mm |
|
10 |
Z Axis Quickly Positioning Speed |
30m/min |
|
11 |
W1/W2 Axis Effective Distance |
360° Infinite Rotation |
|
12 |
W1/W2 Axis Quickly Positioning Speed |
80rpm |
|
13 |
Y3 Axis Effective Distance |
3050/4050/6050/8050/12050mm |
|
14 |
Y3 Axis Quickly Positioning Speed |
120m/min |
|
15 |
X Axis Positioning Accuracy |
±0.03mm |
|
16 |
X Axis Repeated Positioning Accuracy |
0.02mm |
|
17 |
Y1/Y2 Axis Positioning Accuracy |
±0.03mm |
|
18 |
Y1/Y2 Axis Repeated Positioning Accuracy |
0.02mm |
|
19 |
Z Axis Positioning Accuracy |
±0.01mm |
|
20 |
Z Axis Repeated Positioning Accuracy |
0.005mm |
|
21 |
W1/W2 Axis Positioning Accuracy |
±0.03° |
|
22 |
W1/W2 Axis Repeated Positioning Accuracy |
0.02° |
|
23 |
Y3 Axis Positioning Accuracy |
±0.03mm |
|
24 |
Y3 Axis Repeated Positioning Accuracy |
0.02mm |
|
25 |
Plate Cutting Use Axis |
X, Y1, Y2, Z |
|
26 |
Pipe Cutting Use Axis |
X, Z, W1, W2, Y3 |
|
27 |
Laser Power |
1000-15000W |
|
28 |
IP Grade |
IP54 |
|
29 |
Input Power Supply |
3×380/400/415V, 50/60Hz |
|
30 |
Equipment Main Color |
RAL 5015 Himmelblau or Customized |
