Strict quality control of parts & finished products
——————————————————————————————————— Hairui rotary spraying trolley are known worldwide for their excellent quality.

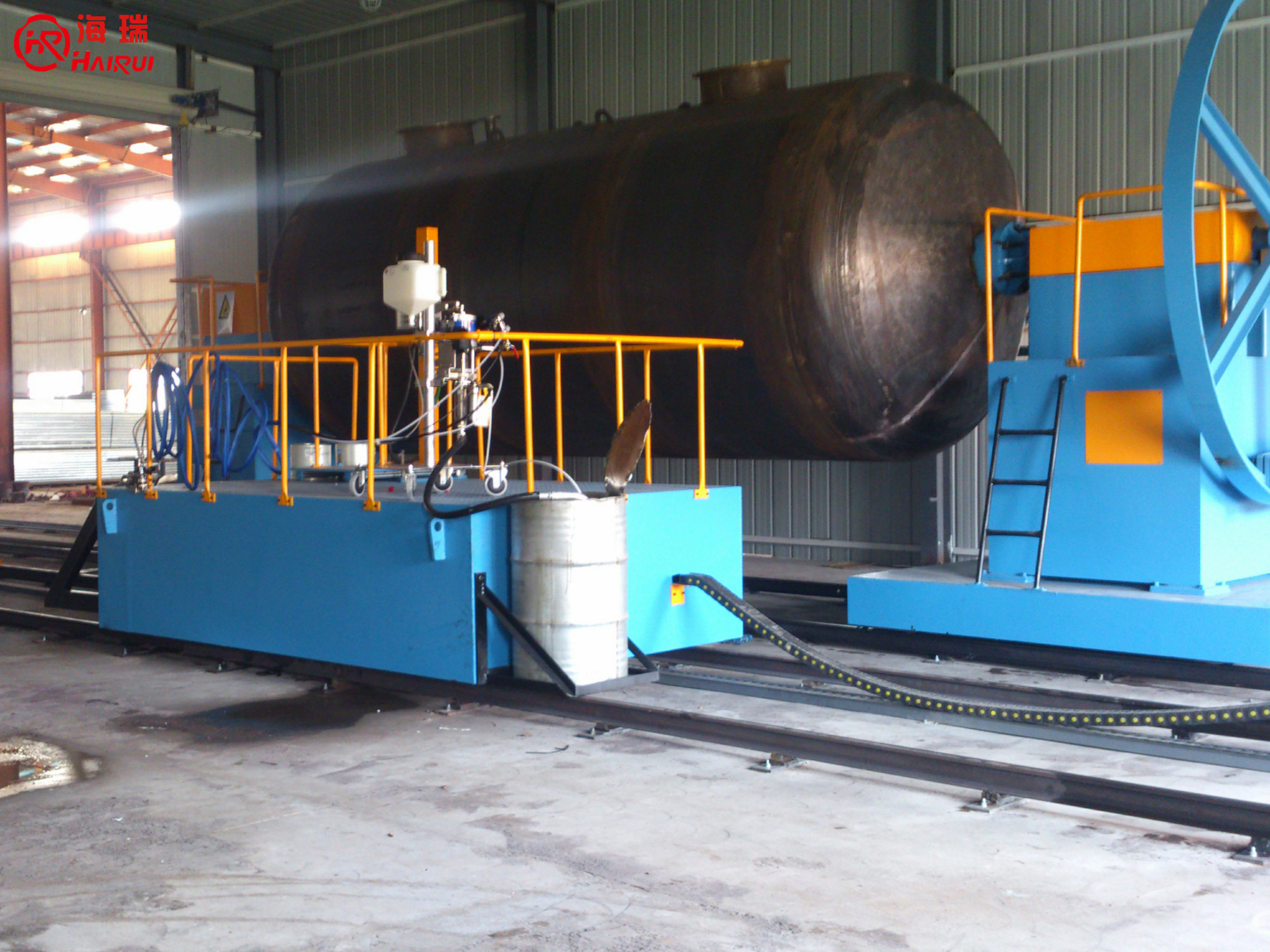

HRPT-rotary spraying trolley is mainly used for spraying FRP on steel oil tanks, which is mainly composed of drive rotary trolley, driven rotary trolley, spraying trolley, electrical control system and so on. The rotary trolley drives the workpiece to rotate and the spraying trolley drives the spray gun to move for spraying, use the method of rotating while moving for spiral spraying, the uniform speed of workpiece rotation and spray gun movement ensures the stability of spraying. The electrical control system adopts frequency conversion speed regulation and cordless remote controller control, the equipment has the advantages of advanced structure, stable and reliable operation, high degree of automation, convenient operation and so on.
Be Your Strong Partner
China's First-class FRP Oil Tank Equipment Manufacturer
Provide Complete FRP Oil Tank Production Process Training
|
Model |
HRPT-3200 |
|
Max Load |
10000kg |
|
Max Cylinder Diameter |
3200mm |
|
Rotation Center Height |
2300mm |
|
Rotating Trolley Guide Rail Center Distance |
2060mm |
|
Rotating Trolley Guide Rail Length |
32000mm |
|
Spraying Trolley Guide Rail Center Distance |
1660mm |
|
Spraying Trolley Guide Rail Length |
16000mm |
|
Rotation Speed |
0.55-5.5rpm |
|
Rotating Trolley Moving Speed |
250-2500mm/min |
|
Spraying Trolley Moving Speed |
200-2000mm/min |
|
12.5kw |
|
|
IP Grade |
IP54 |
|
Input Power Supply |
3×380/400/415V, 50/60Hz |
|
Equipment Main Color |
RAL 5015 Himmelblau or Customized |
According to the actual needs of customers, provide corresponding technical guidance and equipment information, answer various questions raised by customers, design laser processing solutions for customers from technical feasibility, and provide related equipment for customers to visit, sample, test machine.
Sales Service
Investigate the customer’s machine use site, assist the user in planning the layout of the water, electricity, gas and other equipment in the production site according to the actual situation on site, provide the customer with a complete set of equipment operation instructions, and provide training service for the user’s equipment operator. Before delivery, train the user's equipment operators on basic equipment theory, safety protection and equipment maintenance.
After Sales Service
In the user’s factory, the user’s equipment operator is trained in actual processing operations, equipment daily maintenance and safe operation to ensure that the user can familiarize with the equipment operation rules and methods as soon as possible, and can independently use the equipment for production. After the complete set of equipment is installed and debugged at the user’s site, the warranty is free for one year from the date of acceptance by the user. Our company will also arrange technical personnel to conduct technical visits from time to time, communicate with customers on routine maintenance and inspection of equipment, and answer various questions raised by users.
Service Commitment
Service response time within 2 hours, the professional after-sales service team provides 24-hour technical support by email, video, telephone and other communication methods to provide customers with timely, comprehensive, convenient and efficient technical services.
