——————————————————————————————————— Hairui movable lifting cylinder welding machine are known worldwide for their excellent quality.
According to different mechanical structure, this equipment is divided into two models: gantry model and cantilever model.
Double arc double wire submerged arc welding process and double welding head model can be chosen to further improve the welding efficiency.

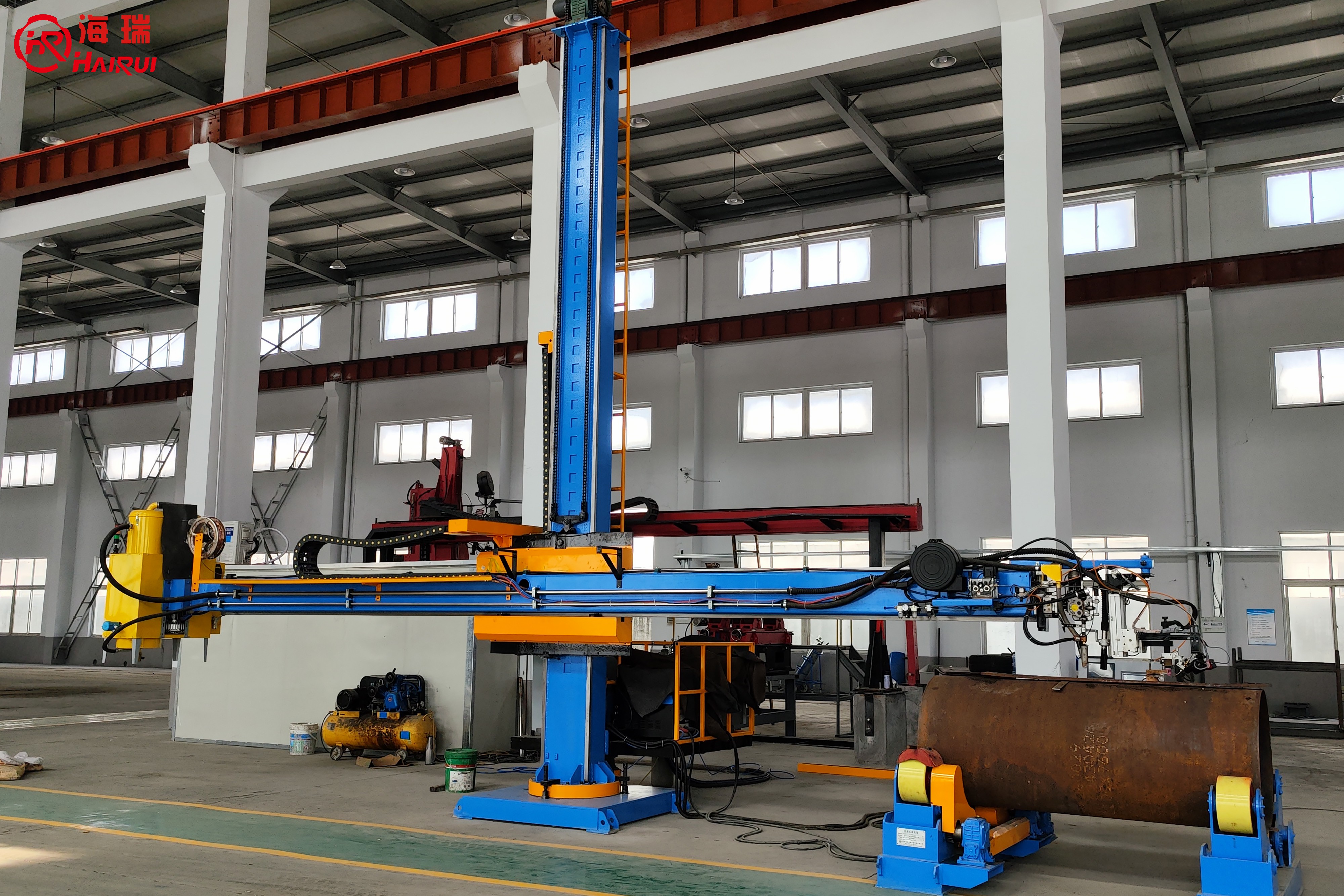

HRYS-movable lifting cylinder welding machine is mainly used for welding oil tank, the welding rotator drives the workpiece to rotate and the welding torch moves to realize the automatic welding of the longitudinal seam and circular seam of the oil tank, and it is divided into two models: gantry model and cantilever model. Equipped with flux recovery & transportation system, which can automatically recover and transport flux during the welding process, which is convenient and efficient. The speed of welding is stepless adjustable by frequency conversion, the equipment has the advantages of advanced structure, stable and reliable operation, high degree of automation, convenient operation and so on.
The standard model chooses single arc single wire submerged arc welding process, and double arc double wire submerged arc welding process is optional to improve welding efficiency, and can also choose double welding head model to further improve the welding efficiency.
Be Your Strong Partner
China's First-class Steel & FRP Double-Deck Oil Tank Equipment Manufacturer
Provide Complete Steel & FRP Double-Deck Oil Tank Production Process Training
|
Model |
HRYS-3200(G) |
HRYS-3200(C) |
|
Structure Type |
Gantry Type |
Cantilever Type |
|
Platform Max Load |
2000kg |
|
|
Max Cylinder Diameter |
3200mm |
|
|
Guide Rail Center Distance |
4200mm |
None |
|
Rack Moving Speed |
3000mm/min |
|
|
Platform Lifting Speed |
1000mm/min |
|
|
Welding Trolley Welding Speed |
250-750mm/min |
|
|
Welding Trolley Max Moving Speed |
1000mm/min |
|
|
Welding Trolley Effective Welding Width |
2000mm |
|
|
7.5kw |
||
|
Submerged Arc Welder |
Customized |
|
|
IP Grade |
IP54 |
|
|
Input Power Supply |
3×380/400/415V, 50/60Hz |
|
|
Equipment Main Color |
RAL 5015 Himmelblau or Customized |
|
According to the actual needs of customers, provide corresponding technical guidance and equipment information, answer various questions raised by customers, design laser processing solutions for customers from technical feasibility, and provide related equipment for customers to visit, sample, test machine.
Sales Service
Investigate the customer’s machine use site, assist the user in planning the layout of the water, electricity, gas and other equipment in the production site according to the actual situation on site, provide the customer with a complete set of equipment operation instructions, and provide training service for the user’s equipment operator. Before delivery, train the user's equipment operators on basic equipment theory, safety protection and equipment maintenance.
After Sales Service
In the user’s factory, the user’s equipment operator is trained in actual processing operations, equipment daily maintenance and safe operation to ensure that the user can familiarize with the equipment operation rules and methods as soon as possible, and can independently use the equipment for production. After the complete set of equipment is installed and debugged at the user’s site, the warranty is free for one year from the date of acceptance by the user. Our company will also arrange technical personnel to conduct technical visits from time to time, communicate with customers on routine maintenance and inspection of equipment, and answer various questions raised by users.
Service Commitment
Service response time within 2 hours, the professional after-sales service team provides 24-hour technical support by email, video, telephone and other communication methods to provide customers with timely, comprehensive, convenient and efficient technical services.
-
