HRIZHJ-Intelligent H beam assembling welding straightening 3 in 1 machine production line is based on the similar products abroad and our own experience in research and develop H beam welding production line equipment for many years, in response to the market demand, while optimizing and improving the traditional H beam assembling welding straightening 3 in 1 machine to improve its intelligence level, it is equipped with input hydraulic flipping frame, electromagnetic chuck, input web auxiliary positioning bracket, input roller table, input flange & web pre-centering mechanism, input auxiliary bracket & roller table, hydraulic lifting output roller table, output hydraulic flipping frame, chain steel transfer machine and other auxiliary equipment, thus launching a new type of intelligent H beam assembling welding straightening 3 in 1 machine production line equipment.

According to different process requirements, there are single arc single wire submerged arc welding process, single arc double wire submerged arc welding process and double arc double wire submerged arc welding process for choose.

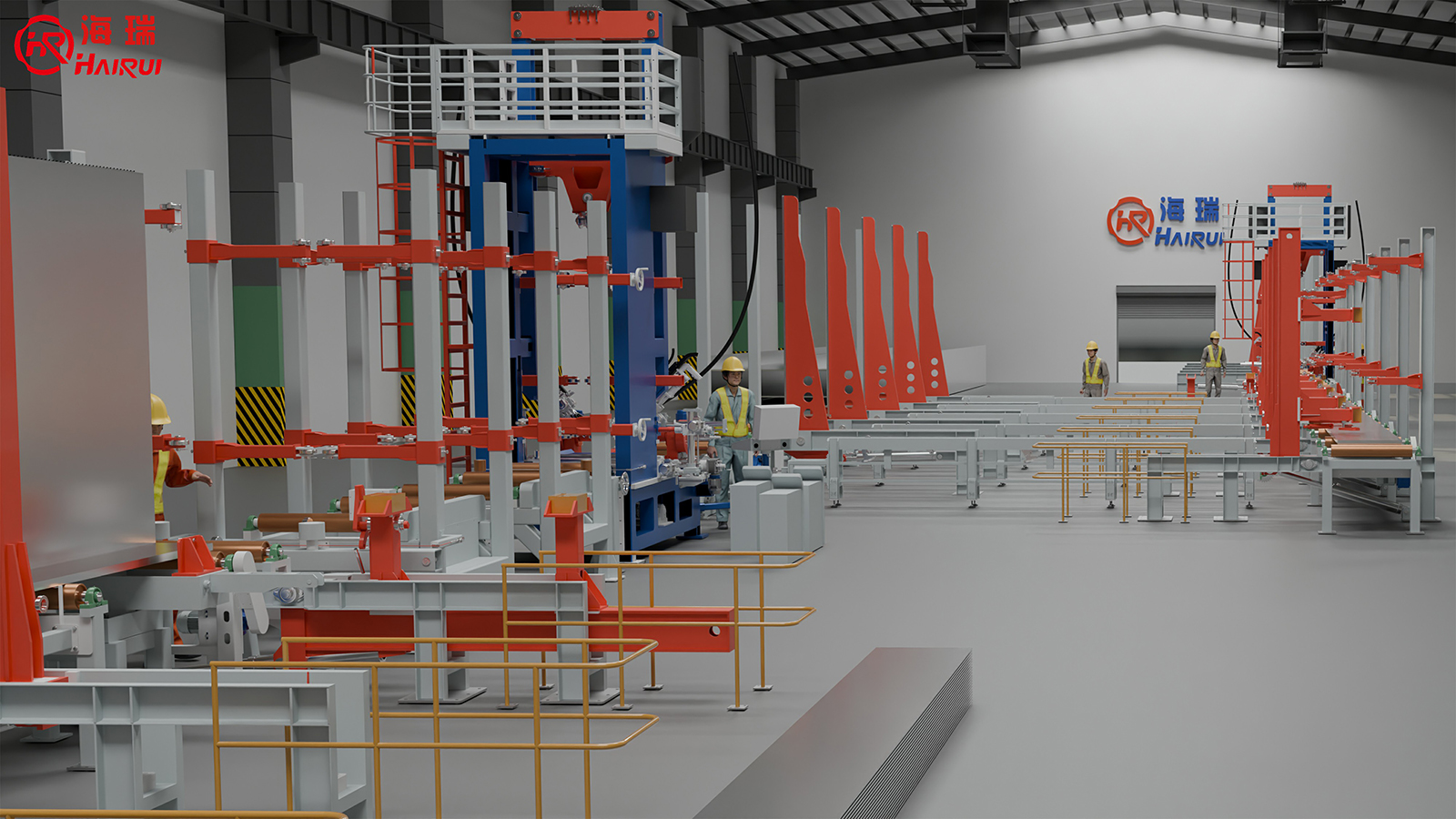

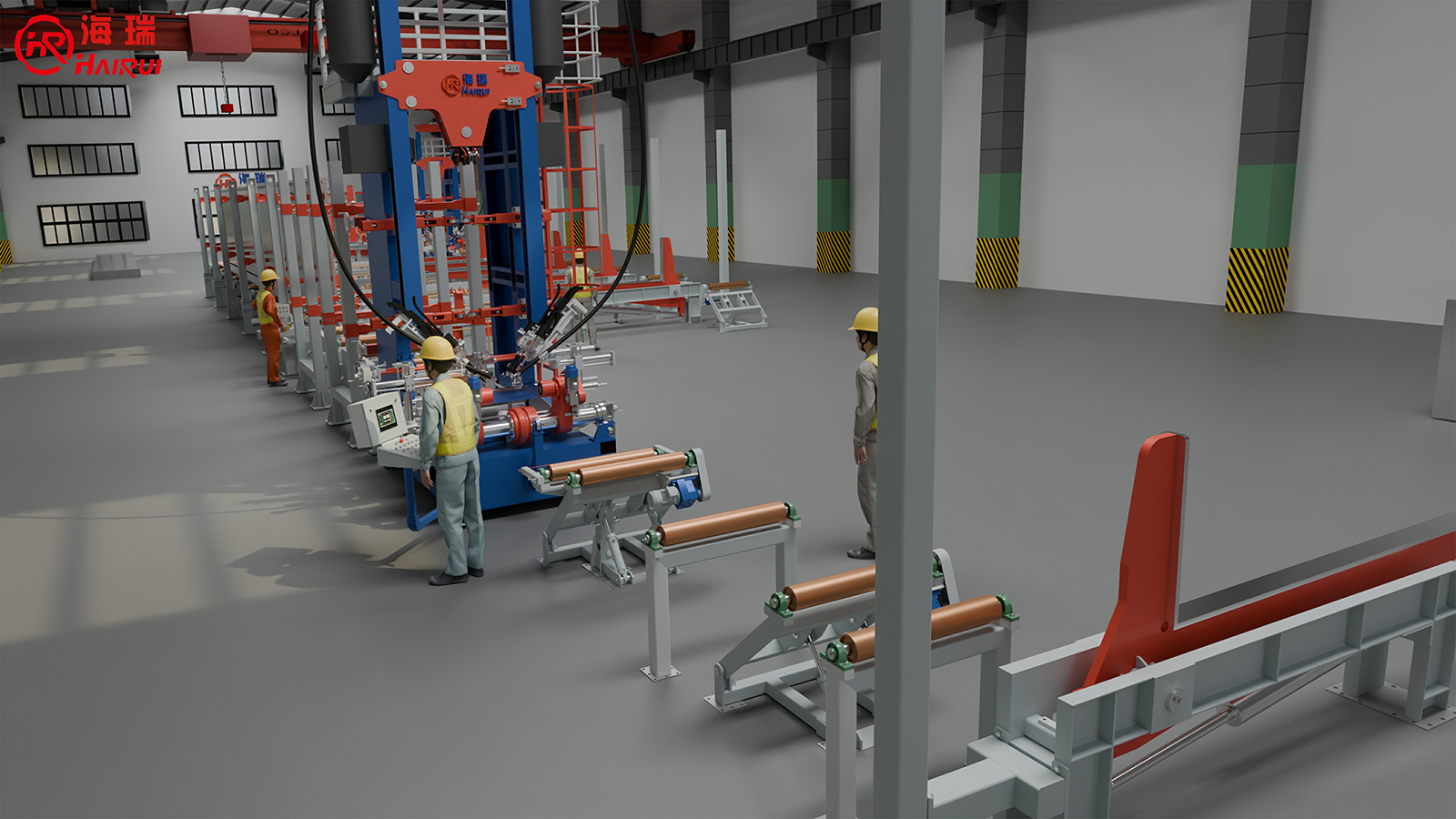

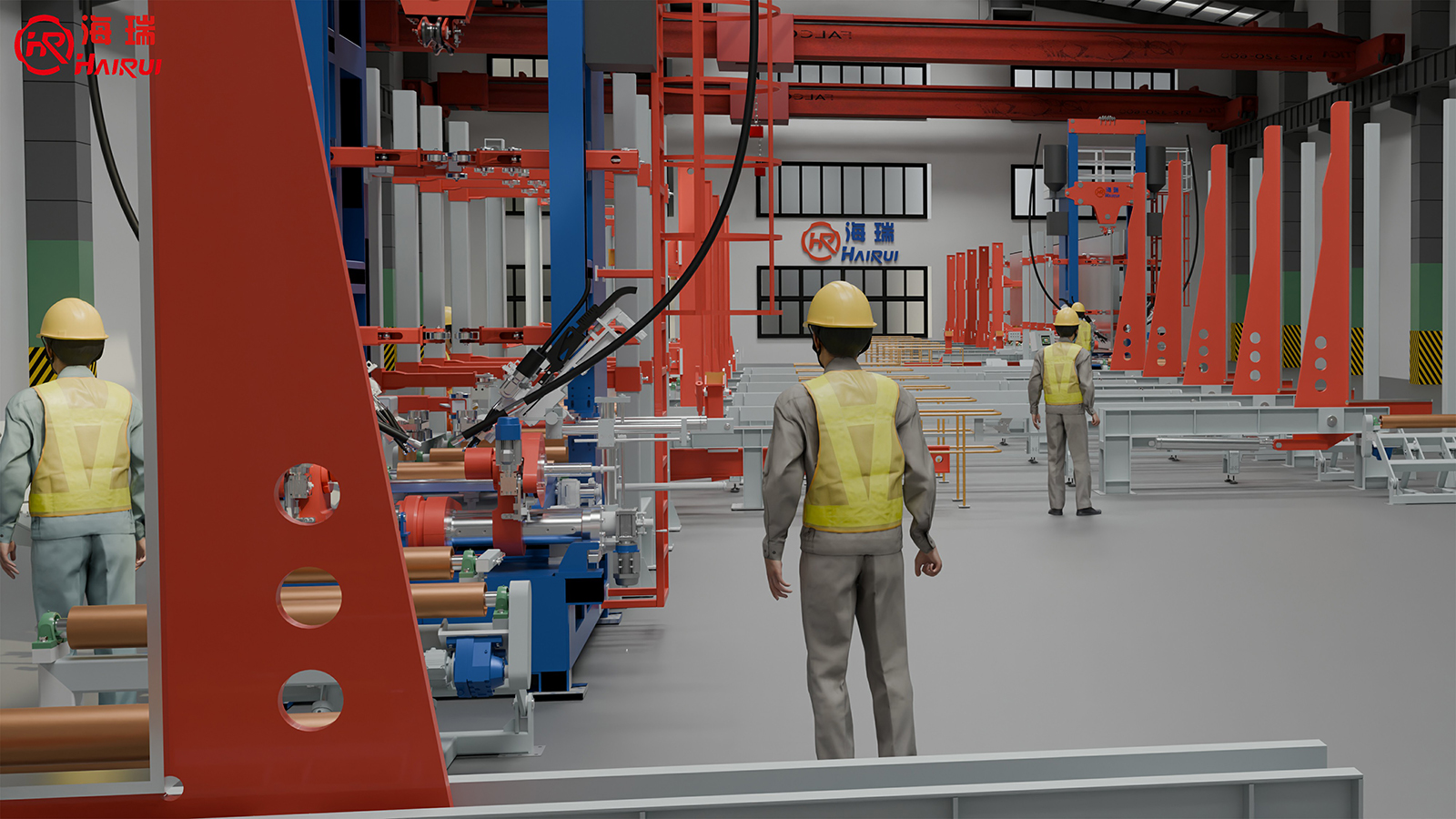

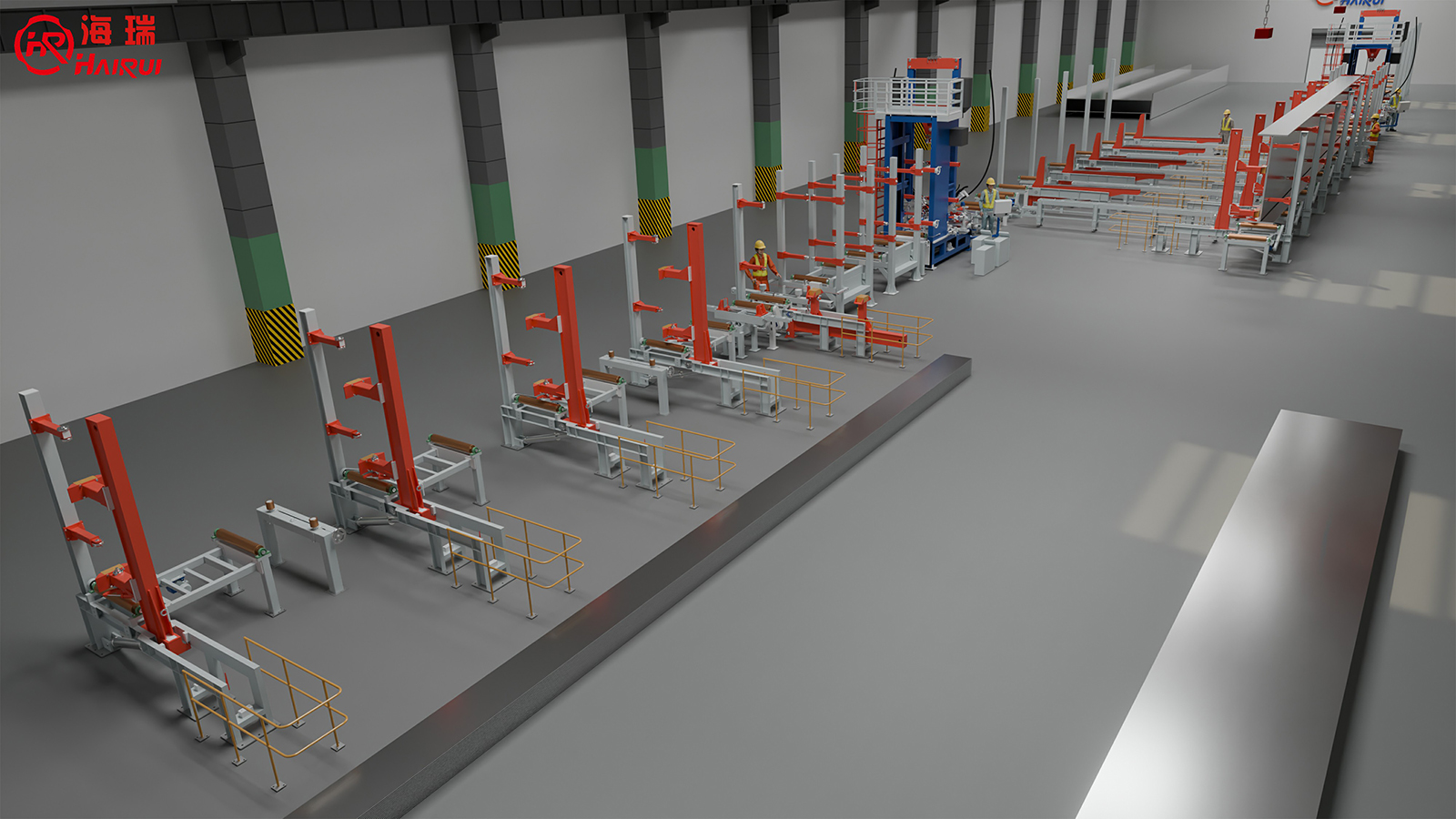

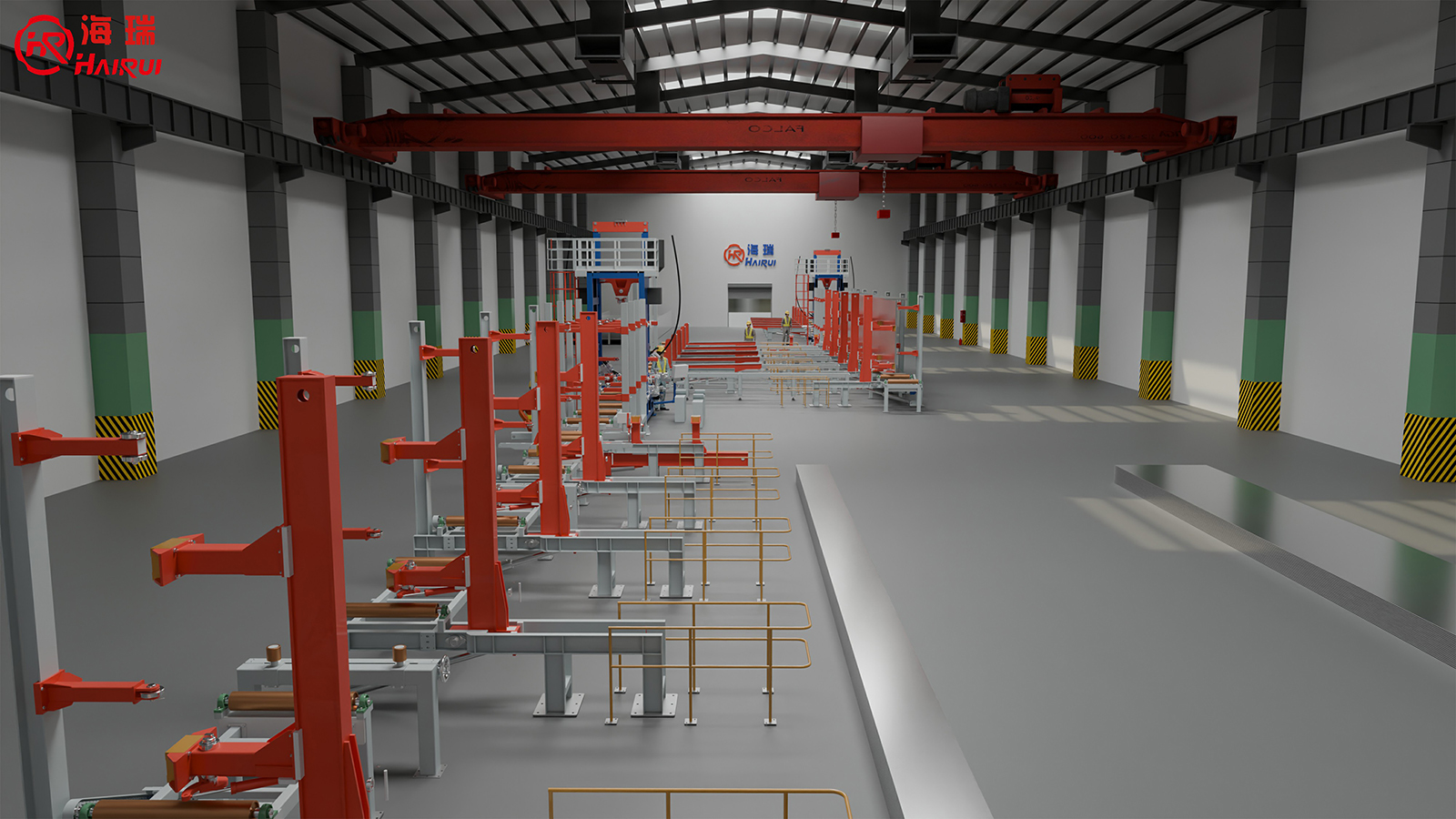

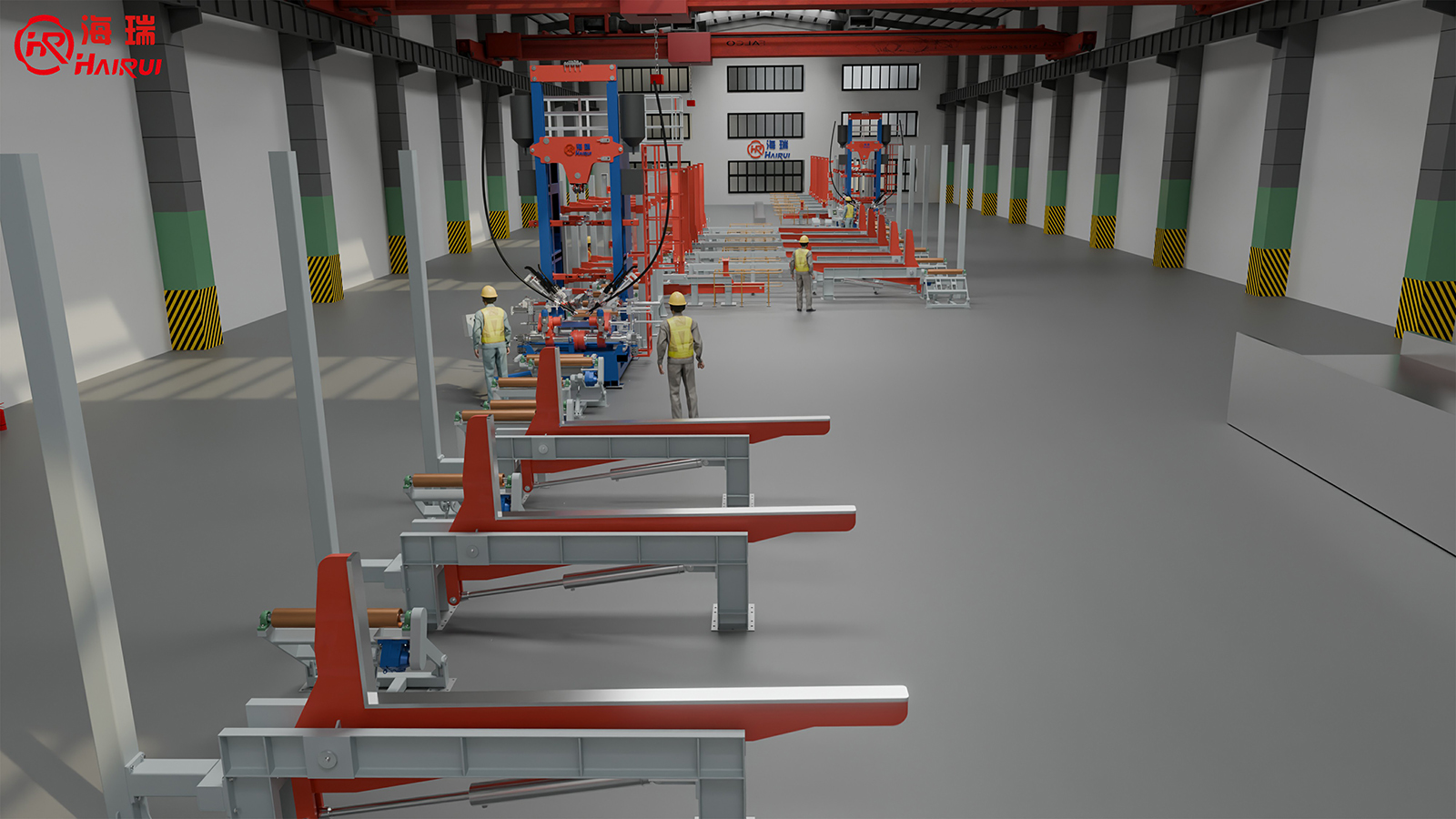

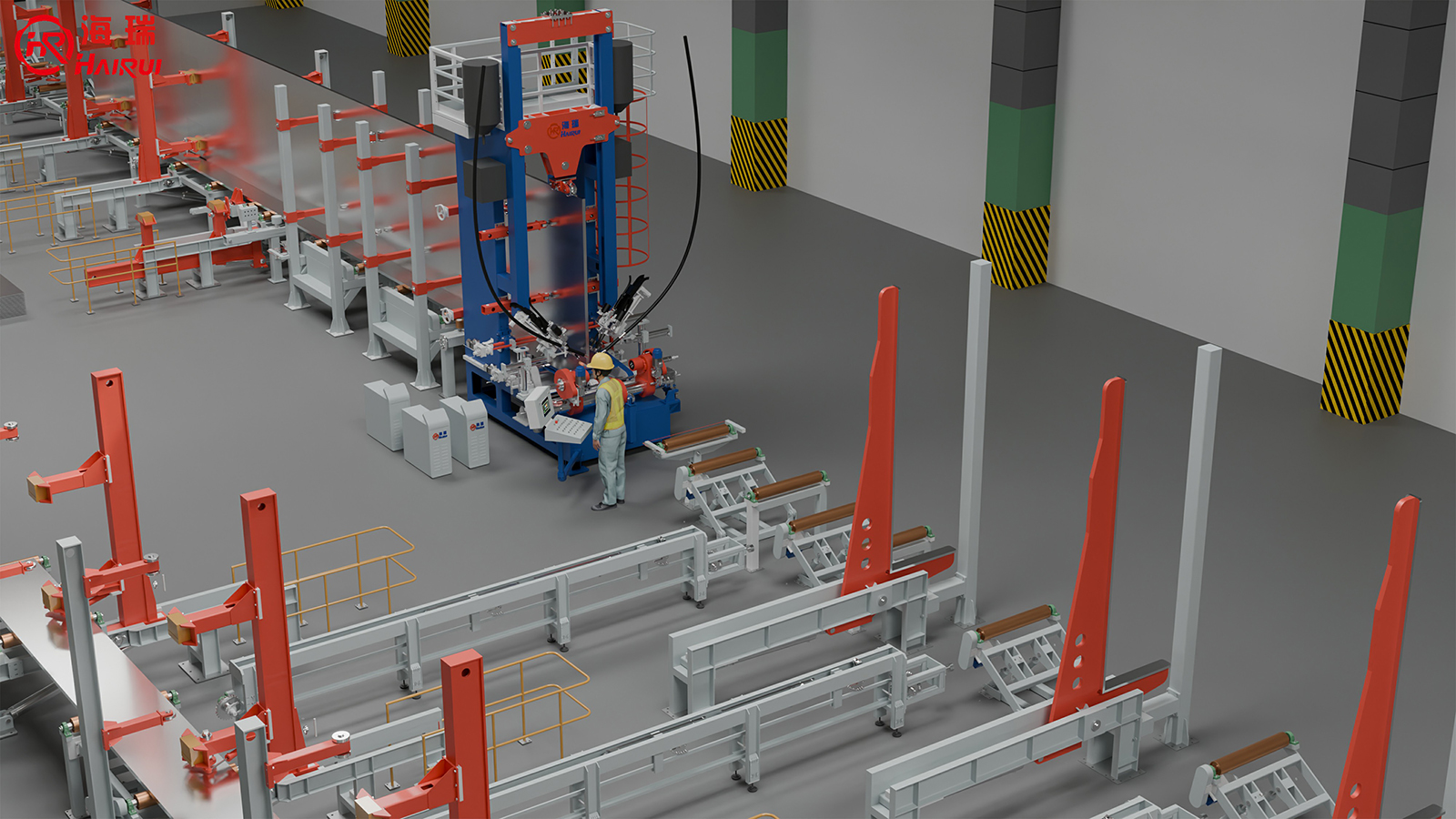

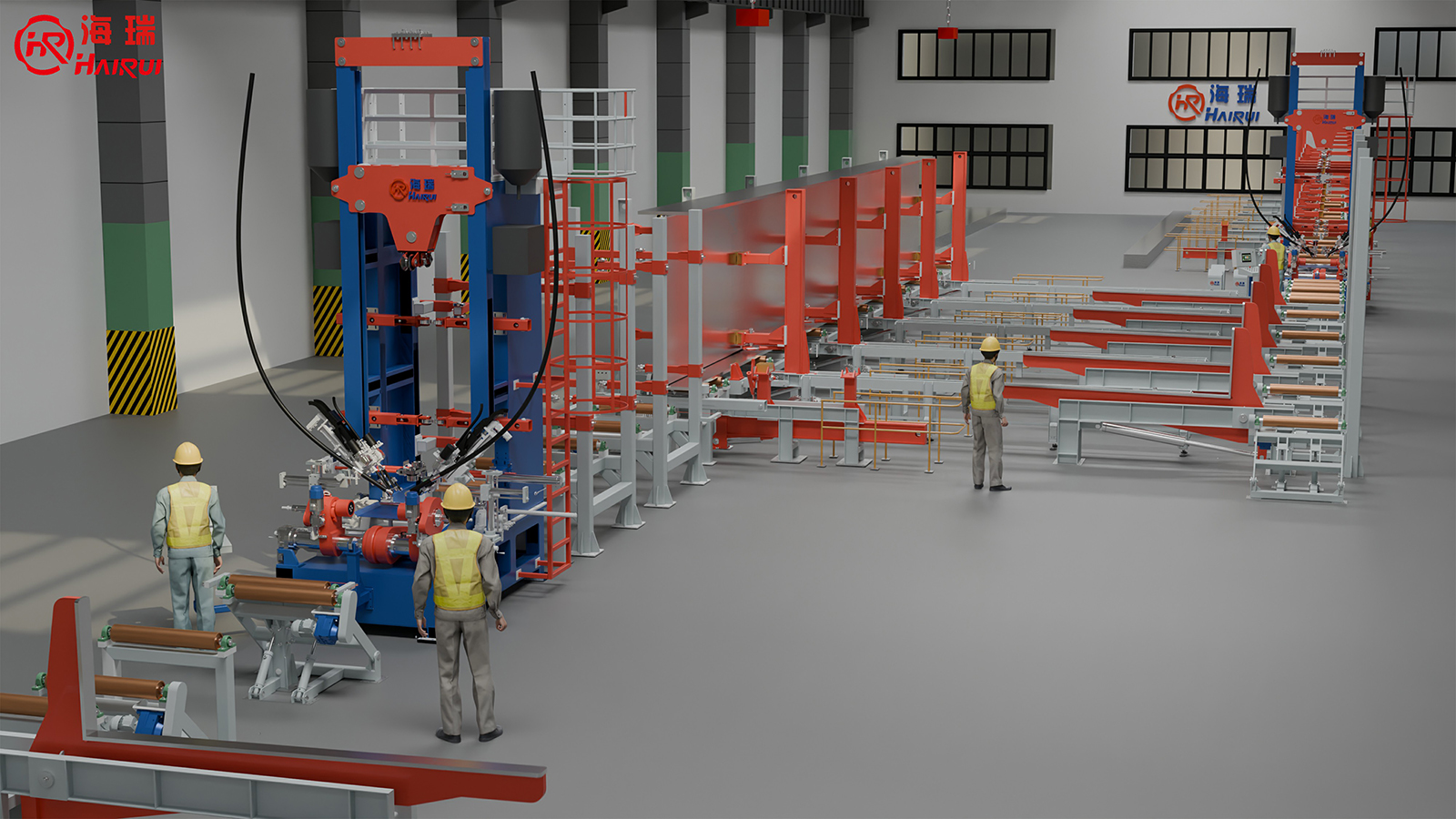

The intelligent H beam assembling welding straightening 3 in 1 machine production line adopts dual machines and dual stations. The first equipment makes T beam, and the second equipment makes H beam. The two equipment are placed in parallel and staggered. The output roller table of the first equipment and the input roller table of the second equipment are arranged side by side, which is convenient for the T beam made by the first equipment to be moved and flipped to the second equipment for the production of H beam.

The production line is based on intelligence. The main machine flange positioning motor, the main machine web positioning motor, the main machine straightening wheel moving motor and the main machine straightening wheel straightening lifting motor are all equipped with encoders, the main machine welding torch adjustment mechanism angle adjustment motor adopts servo motor. These motors can be precisely controlled through PLC and HMI, the automatic setting of the relevant parameters and welding parameters can be completed within a few seconds, after setting the relevant parameters and welding parameters, one-click start and automatic adjustment for welding. It can also memorize and integrate welding parameters and welding torch angle parameters.

This intelligent production line is a global leader in PEB construction and represents the world's most advanced and flexible intelligent solution. It is mainly used for welding T beam, H beam, cross column, box beam and other non-standard beams.
