——————————————————————————————————— Hairui welding column & boom manipulator are known worldwide for their excellent welding quality.
One or more welding processes can be selected:
MIG/MAG Welding
SAW Welding
TIG Welding
PAW Welding
K-TIG Welding

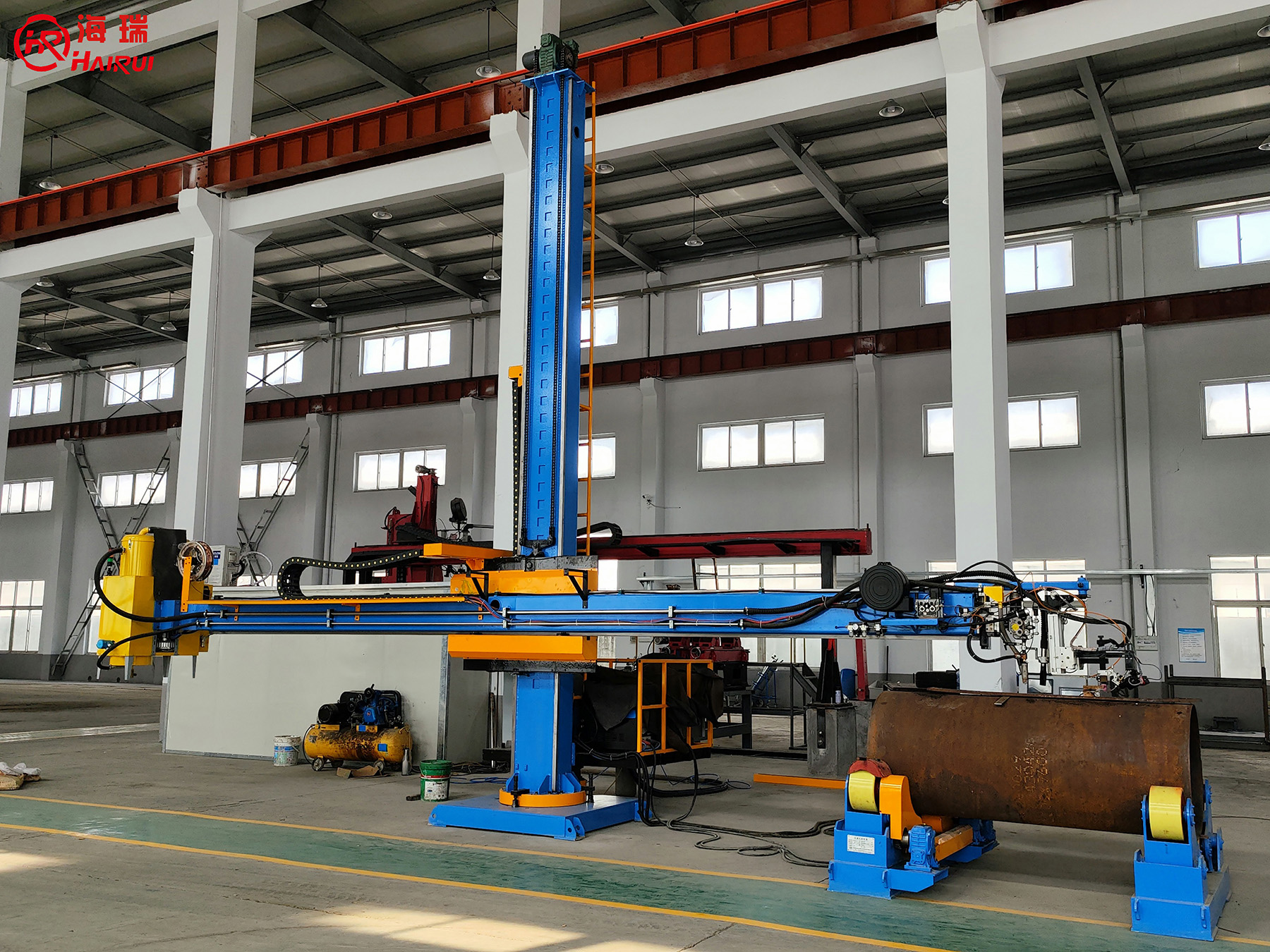

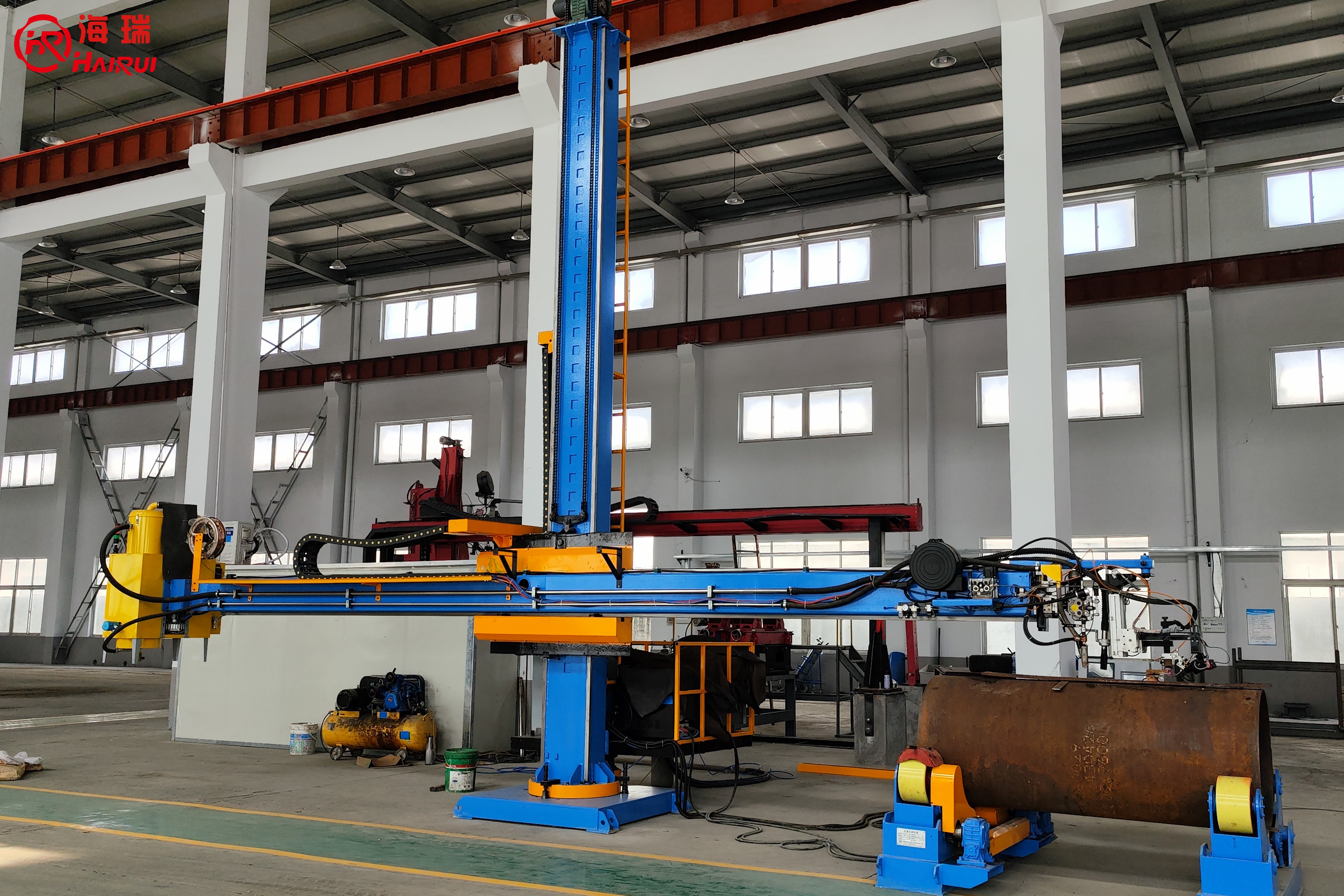

HRLH-welding column & boom manipulator cooperates with welding auxiliary such as welding rotator or welding positioner and automatic welder, the welding rotator or welding positioner drives the workpiece to rotate and the welding torch moves to realize the automatic welding of the longitudinal seam and circular seam of the circular workpiece such as cylinder, elbow, pipe flange and so on. According to different workpieces and process requirements, different welding processes can be selected, one or more welding processes can be selected from MIG/MAG welding, SAW welding, TIG welding, PAW welding, K-TIG welding, there are also strip surfacing welding and narrow gap welding for choose. In addition, auxiliary systems such as welding torch swing function, automatic height adjustment function, automatic welding seam tracking system, rotary conductive device, flux recovery & transportation system, and video monitoring system can be selected according to actual needs.
The standard model is fixed model, column manual rotary mechanism, column electric rotary mechanism and electric moving mechanism are optional to meet diversified welding needs. If need to weld the inner seam of small diameter workpiece, can choose small welding head. If need higher precision welding, can choose linear guide rail precision welding column & boom manipulator, and servo motor drive is optional.
|
Model |
Medium |
Heavy |
||||
|
2020 |
3030 |
4040 |
4040 |
6060 |
8080 |
|
|
Cross Arm Effective Lifting Distance |
2000mm |
3000mm |
4000mm |
4000mm |
6000mm |
8000mm |
|
Cross Arm Effective Telescopic Distance |
2000mm |
3000mm |
4000mm |
4000mm |
6000mm |
8000mm |
|
Cross Arm Lifting Speed |
1000mm/min |
1500mm/min |
||||
|
Cross Arm Telescopic Speed |
150-1500mm/min |
200-2000mm/min |
||||
|
Cross Arm Front End Maximum Load Weight |
150kg |
200kg |
||||
|
Column Rotation Angle |
±180° |
|||||
|
Column Rotation Speed |
0.12rpm |
|||||
|
Rack Moving Speed |
300-3000mm/min |
|||||
|
IP Grade |
IP54 |
|||||
|
Input Power Supply |
3×380/400/415V, 50/60Hz |
|||||
|
Equipment Main Color |
RAL 5015 Himmelblau or Customized |
|||||
Note: Cross arm lifting and telescopic effective distance can be customized according to requirements
